11.Remove the rear cover plate 4. To do this, remove three hexagon
screws with a spring washer and flat washers.
12.Remove nuts 5.
13.Screw nut 7 downward until bracket 6 and rubber buffer 8 can be
removed.
14.Disconnect plug connection 9.
15.Widen one-ear clamps 10 and pull off hoses.
16.Loosen hose clamps 11 and pull off the connection piece.
17.Take out the fuel tank.
18.Remove all screws and remove the tank sensor 12.
Install in the reverse order.

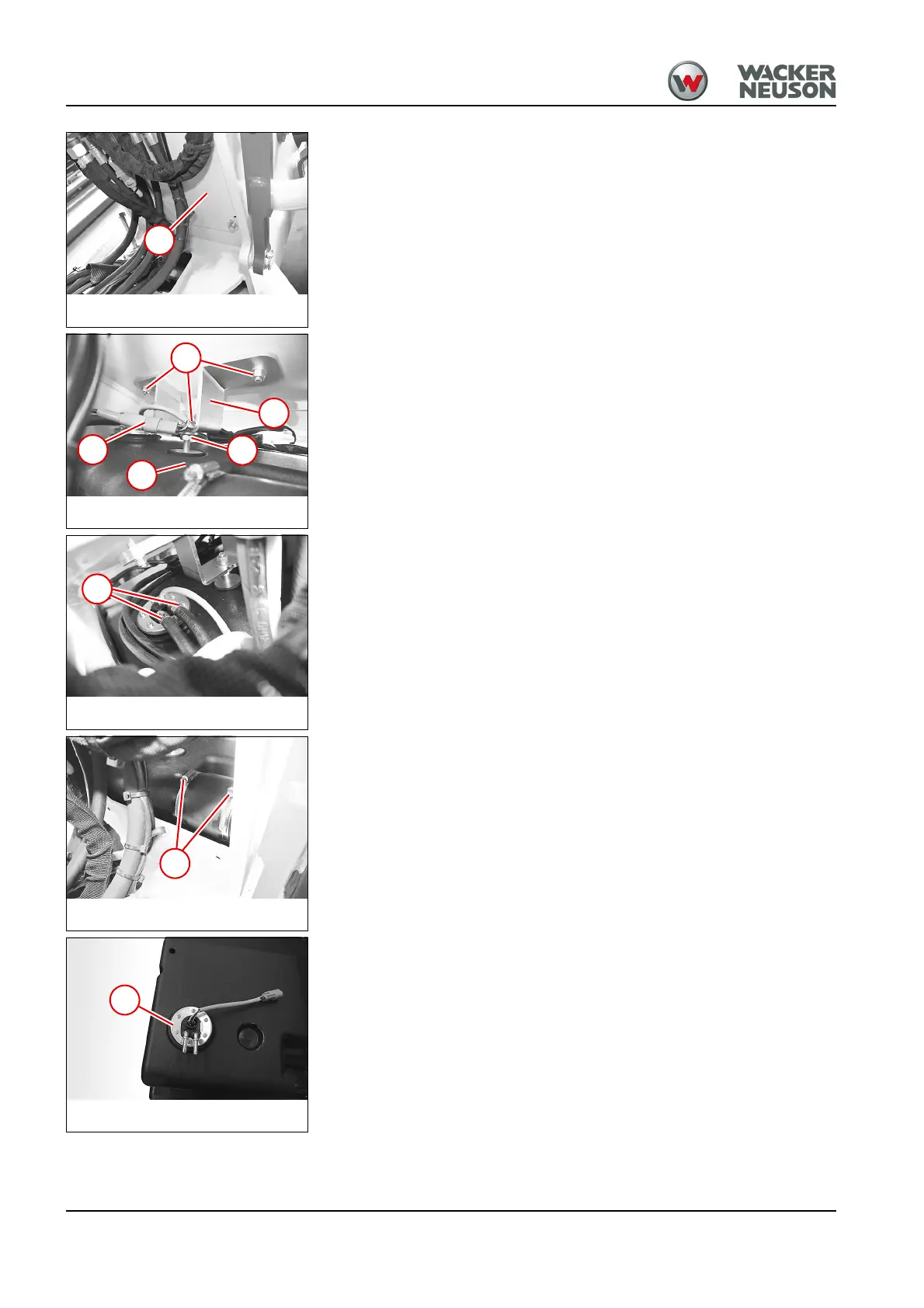

Fig. 100
