Travel drive 4
Hydraulic oil reservoir
11.Remove screw 7.
CAUTION
Injury hazard due to heavy component.
Support the hydraulic reservoir or have a second person hold it.
12.Remove two screws 8.
13.Remove the hydraulic oil reservoir.
Install in the reverse order.
Removing/installing the return filter
1. Open the lid of the ventilation filter 1.
2. Open the cover 2 briefly so that the oil can flow out of the return filter
and into the hydraulic oil reservoir.
3. Close both covers.
4. Disconnect both connectors 3 from the pressure switch.
5. Unscrew and close the hydraulic lines 4.
6. Unscrew the fastening screws.
7. Pull the return filter upward out of the hydraulic oil reservoir.
8. Cover the openings immediately (for example, with a cloth).
Install in the reverse order.
NOTICE
Before installing the return filter, apply a silicone seal to the openings 5, 6
and 7.

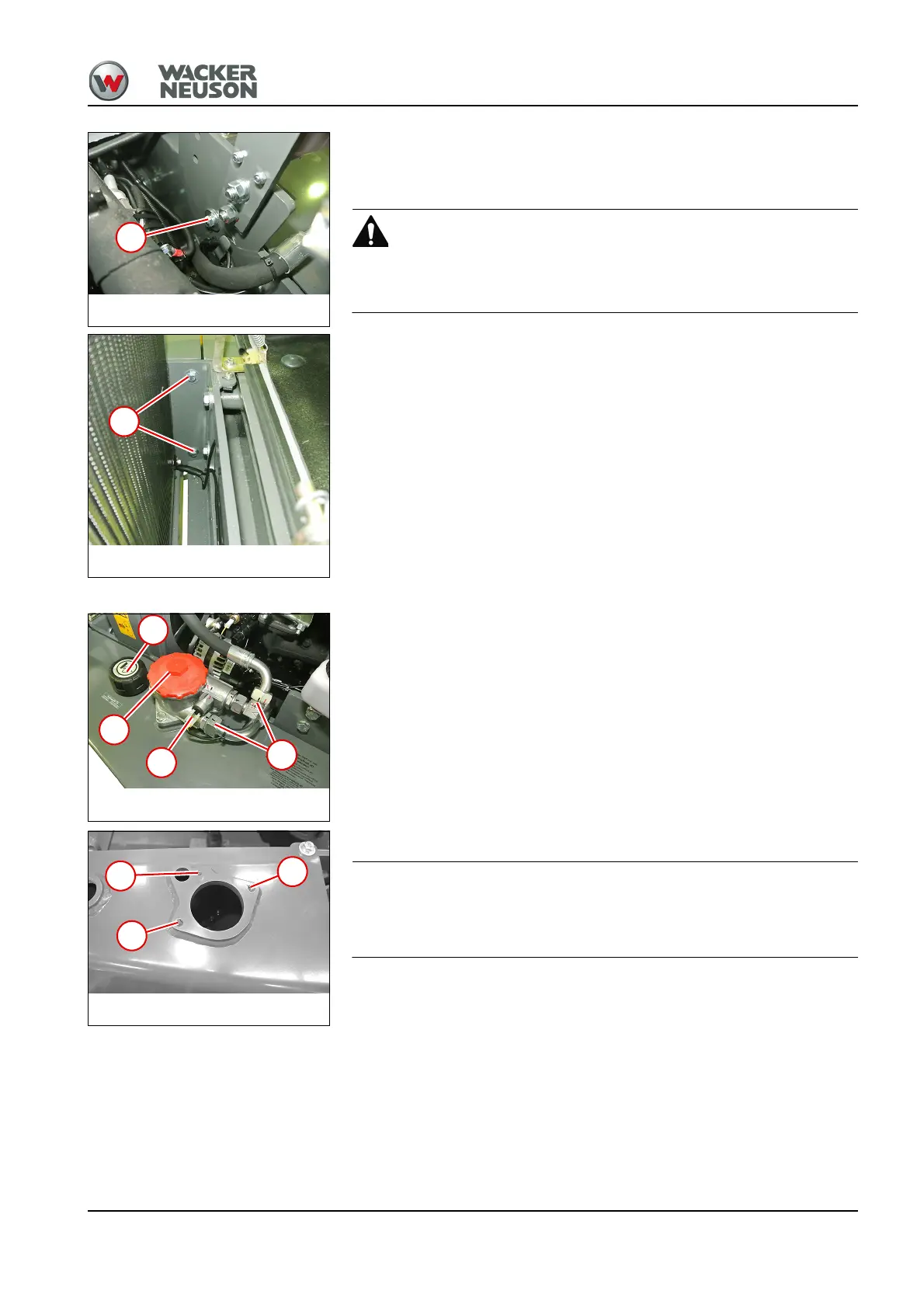

Fig. 127
7
Fig. 128
8
Fig. 129
1
3
2
4
Fig. 130
7
6
5
