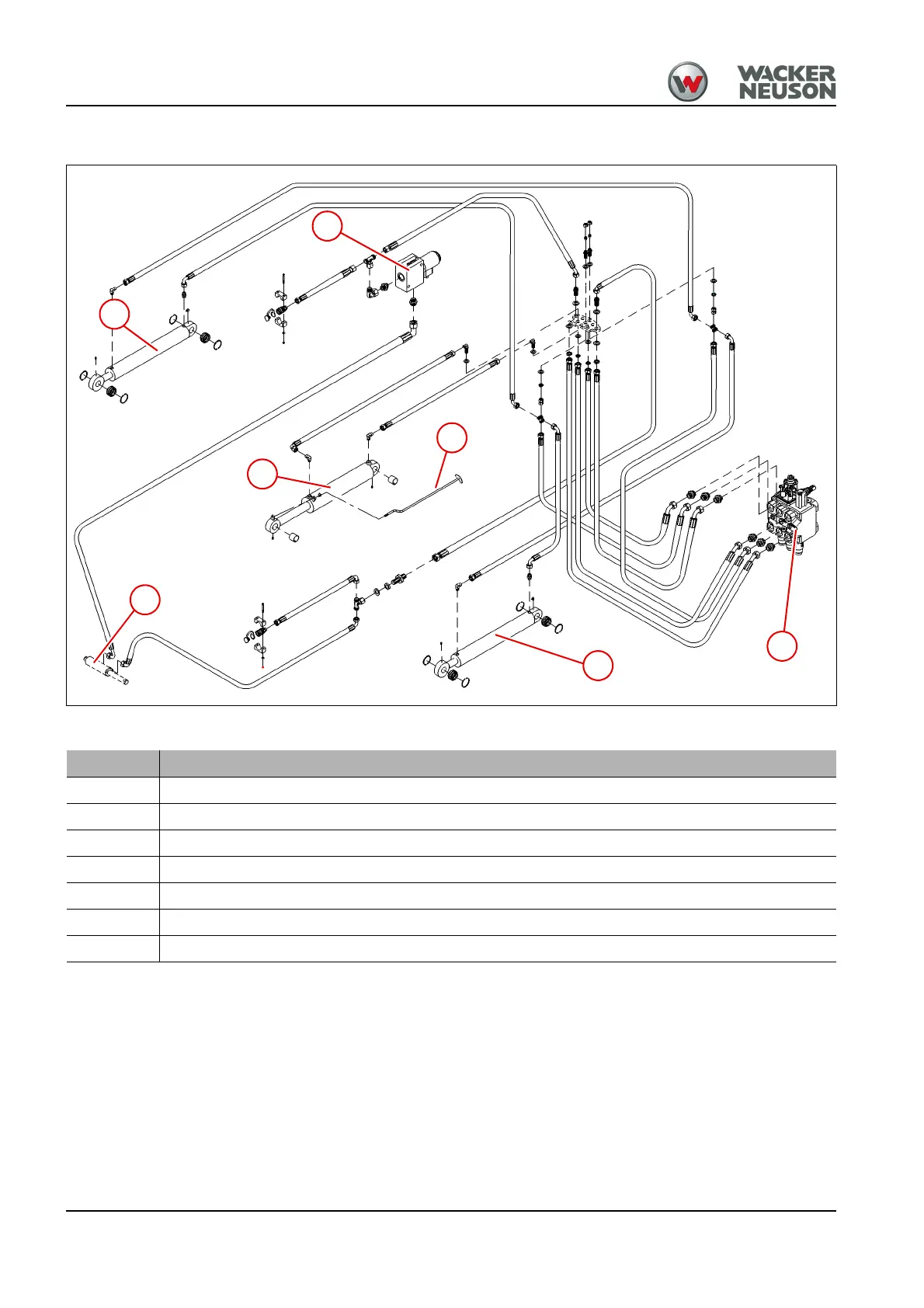

Hose routing
8.2 Vehicles with a serial number < 3025887
1
3
2
5
4
6
7
Item Designation
1 Lifting cylinder
2 Solenoid valve (unlocking the lock cylinder)
3 Tilt cylinder
4 Level indicator
5 Lock cylinder
6 Lifting cylinder
7 Control valve
