WSTECH APS Series - Figure 86: Dimensioning of the AC Connection (Detail View)

Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Installation
APS-Series 120 Operating Instructions v320 EN
Page 105 of 213

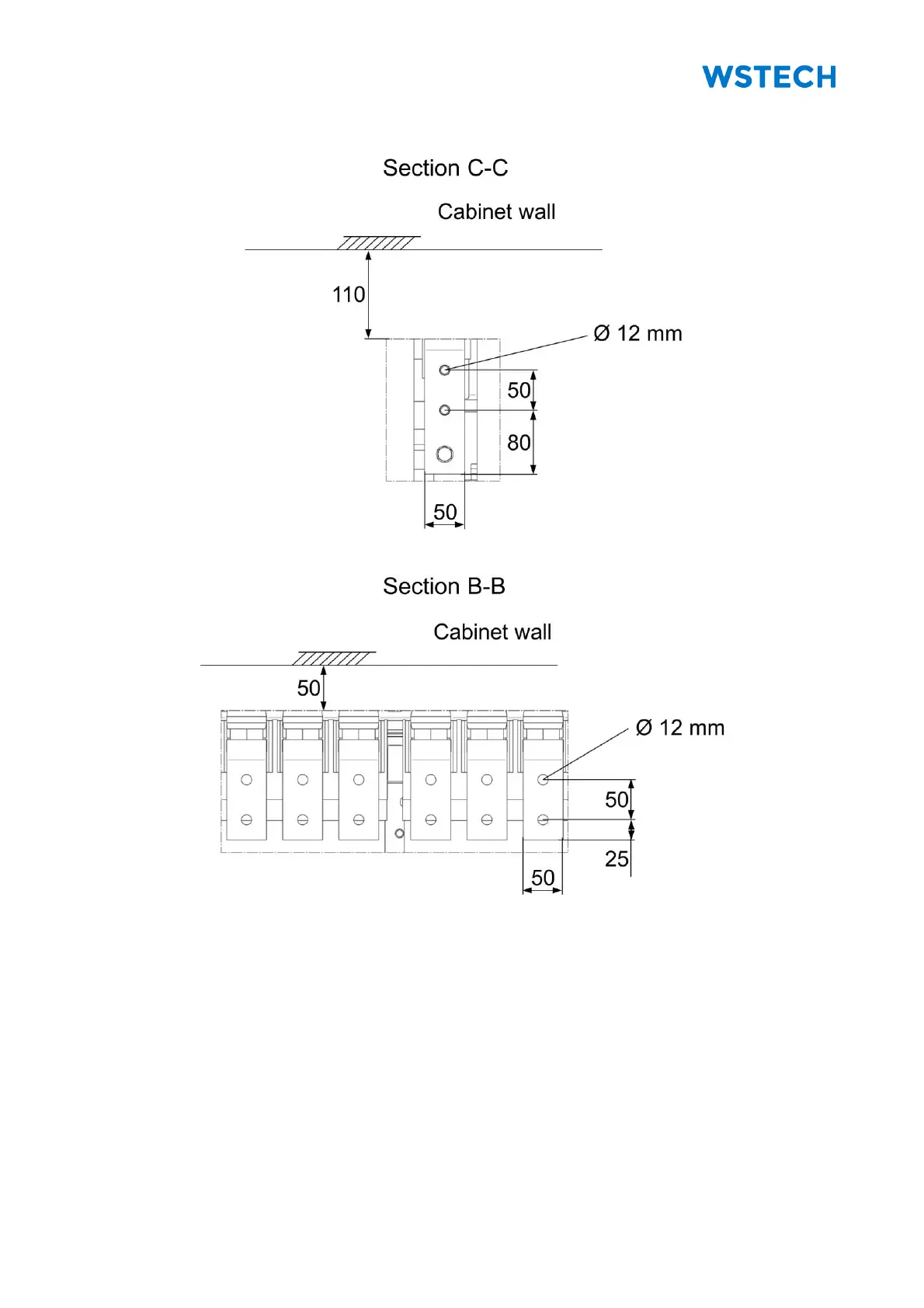

Figure 86 shows the sectional views B-B and C-C.
Figure 86: Dimensioning of the AC connection (detail view)
