WSTECH APS Series - Mounting the Radial Fan

Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Installation
APS-Series 120 Operating Instructions v320 EN
Page 84 of 213
4.4.2 Mounting the Radial Fan
NOTICE: For transport the radial fan is mounted inside the cabinet.
Table 13: Required material for one radial fan
Quantity
Description
Part No.
Delivery
6 pcs.
Cylinder head screw
420074
See separate
package
6 pcs.
Spring lock washer
430003
See separate
package

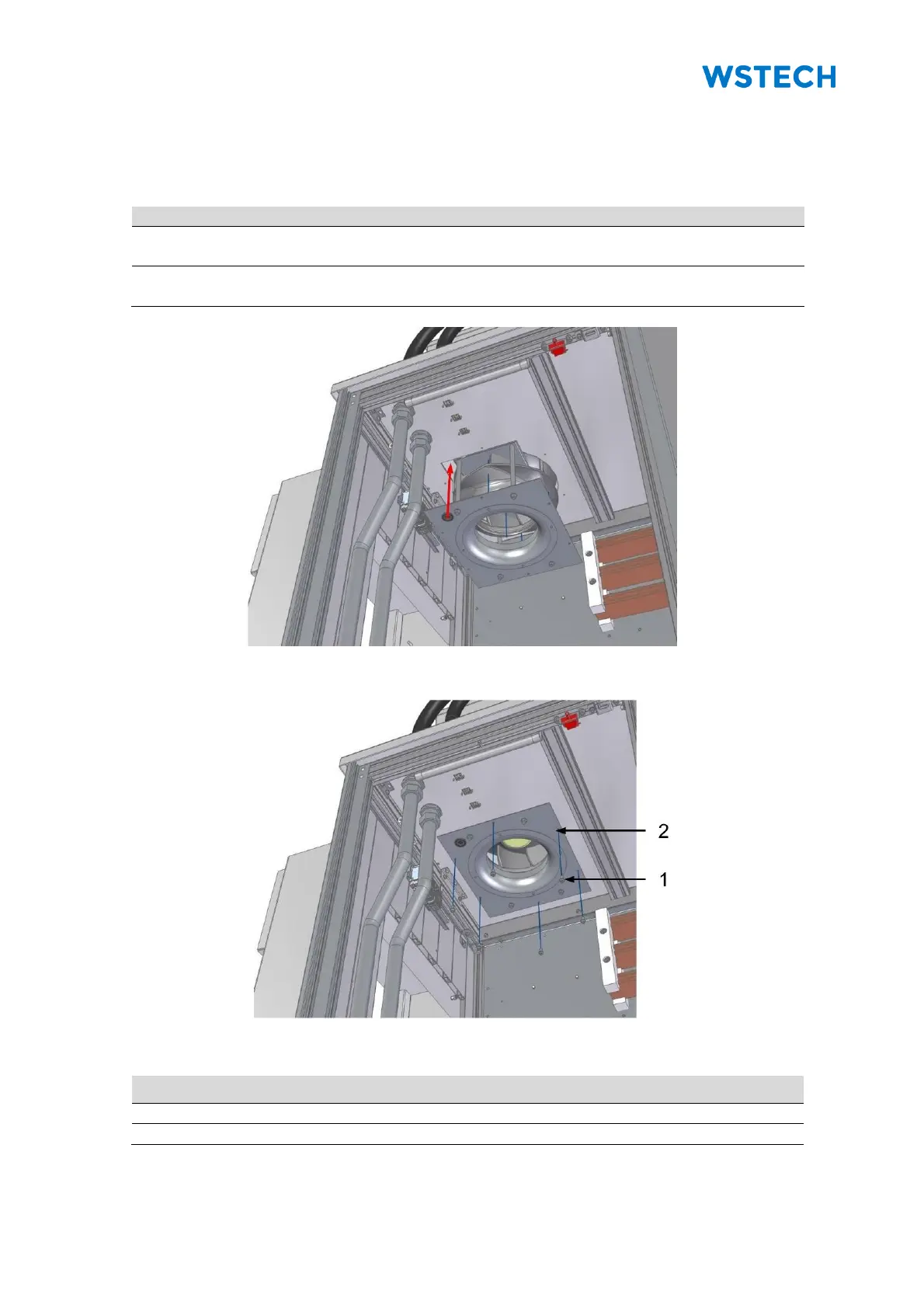

Figure 68: Positioning the radial fan
Figure 69: Mounting the radial fan
Pos.
Description
1
Cylinder head screw
2
Spring lock washers
