3.2.1 Centre of Gravity
Observe the eccentric centre of gravity during transport.
Figure 29: Centre of gravity symbol

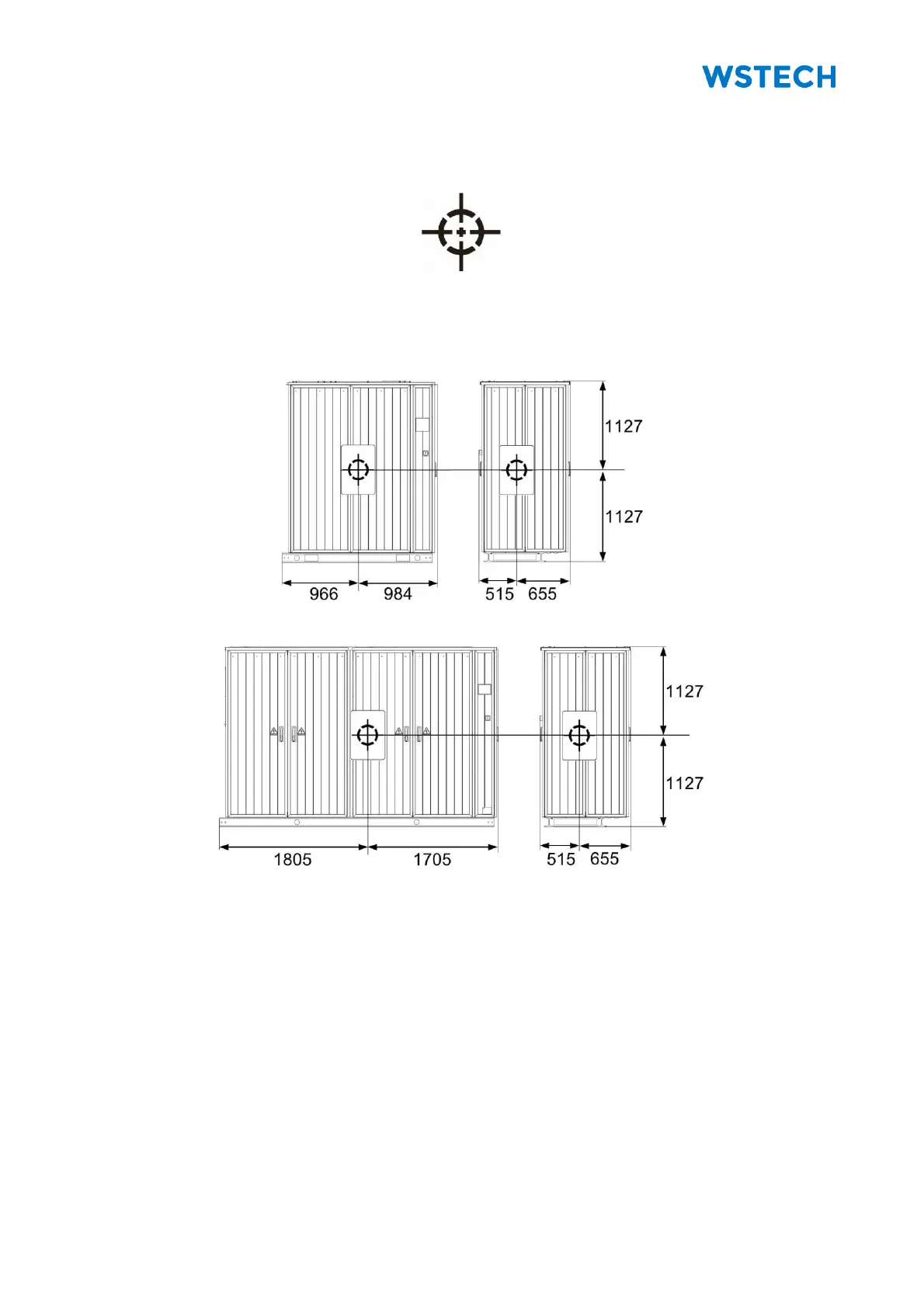

The centre of gravity is shown in Figure 30 and Figure 31. All dimensions given in
millimetre.
Figure 30: Centre of gravity (APS with 1-2 APUs)
Figure 31: Centre of gravity (APS with 3-4 APUs)
