Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Installation
APS-Series 120 Operating Instructions v320 EN
Page 61 of 213
4.2.1 Hole Dimension of the APS Carrier
All dimensions given in millimetre.
NOTICE: The holes of the MV skid are shown in the customer specific documentation.

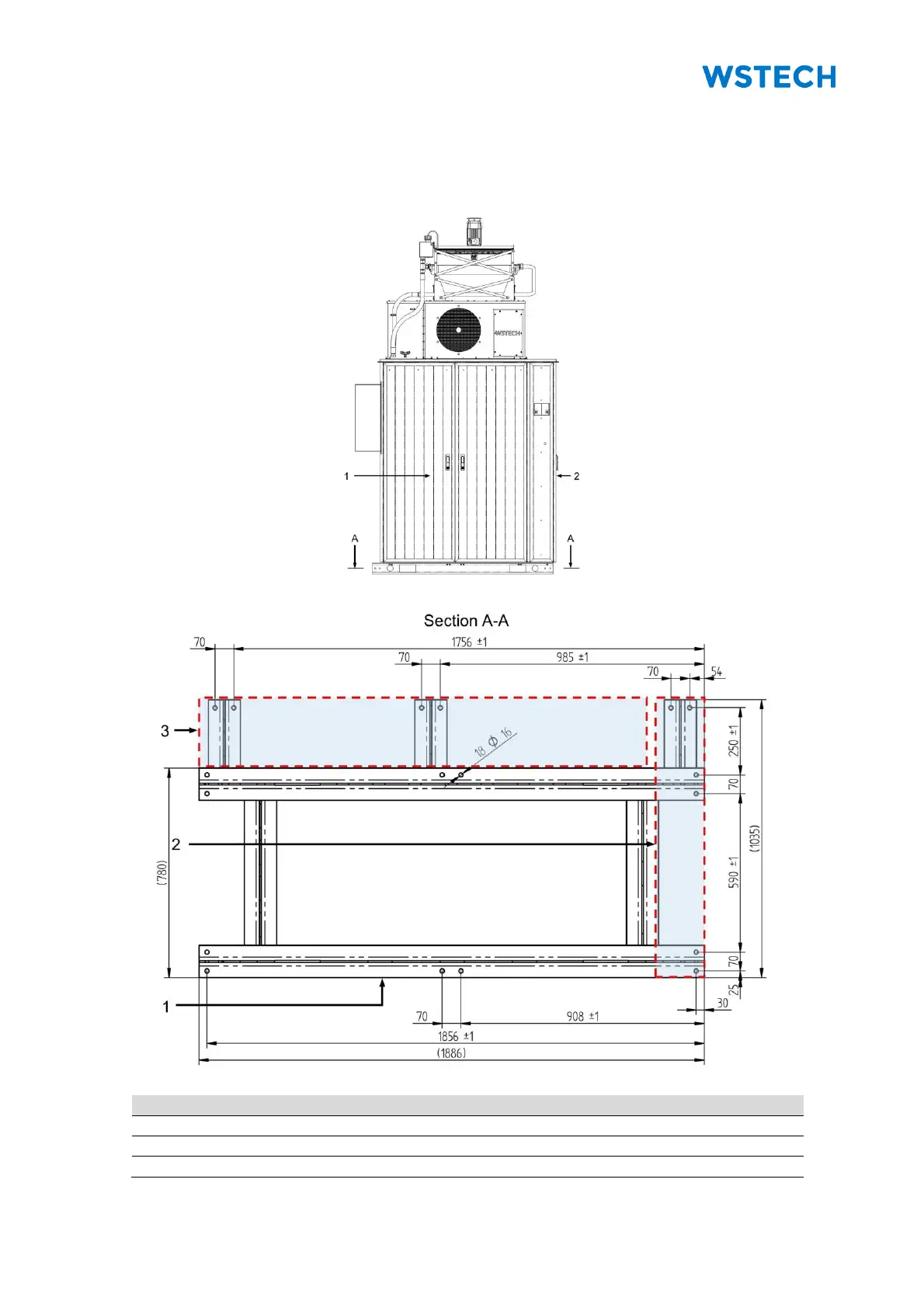

Figure 36: Exterior view front (APS with 1-2 APUs)
Figure 37: Hole dimension of the APS carrier (APS with 1-2 APUs)
Pos.
Description
1
Power unit (+C3)
2
Control unit (+C1)
3
DC distribution (+C2)
