4.2.6.1 Cable Entry of the AC Connection
The customer must perform the cable entries of the AC connection without cover or
delivered cover in accordance to IP65 degree of protection directly in front of the APS.

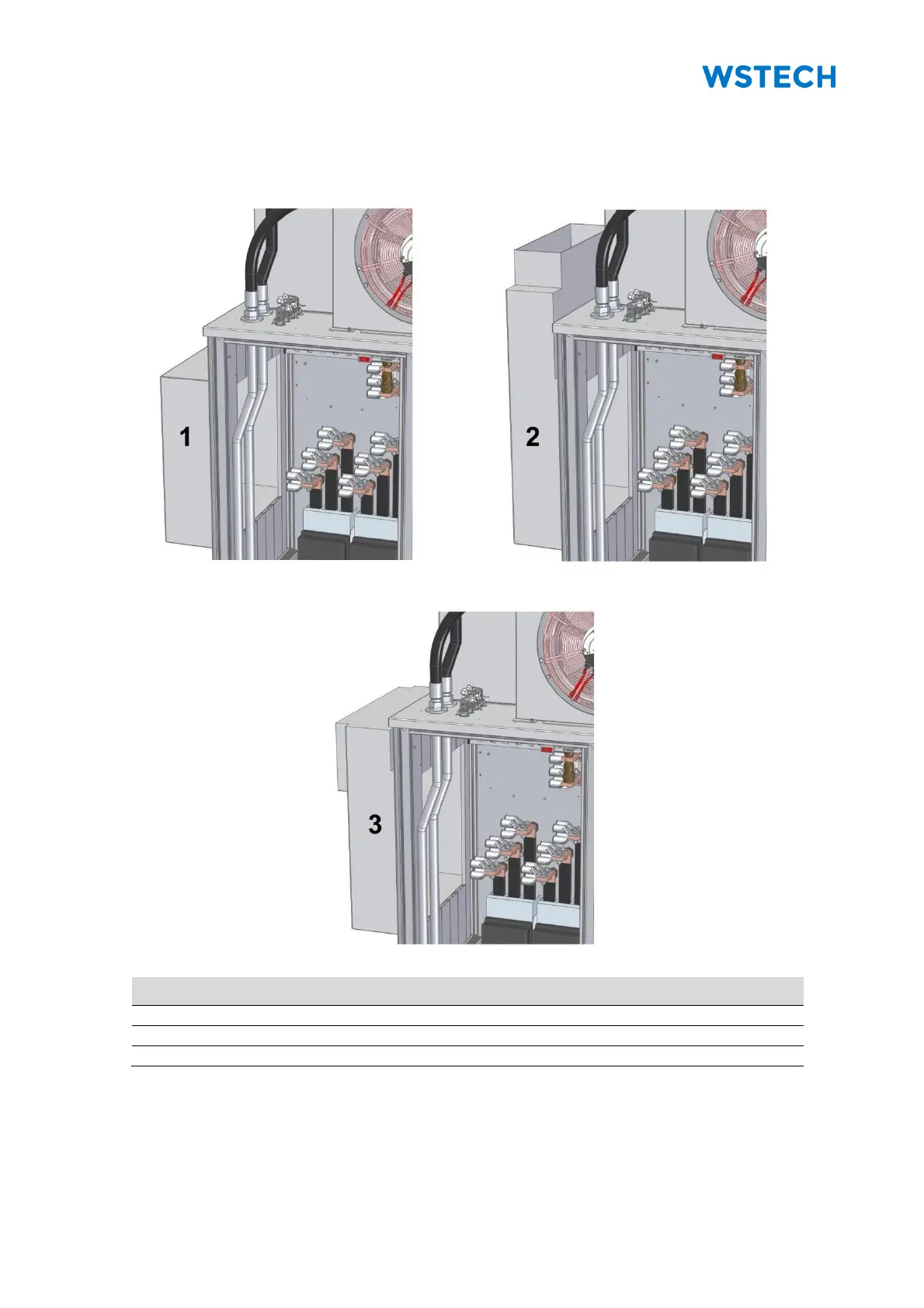

Figure 48: Example cable entries AC connection
Pos.
Description
1
Cover closed
2
Cover open on top or open below
3
Cover open to the left
The standard scope of delivery is without cover. The cover can be ordered separately.
For cover 1 the customer must define cable entries according to IP65. Cover 2 can
rotate 180°, then the cable entry is below.
