4.10 Connection of the Irradiation/Temperature Sensor (optional)
The optional Si-12-TC-T irradiance sensor must be connected to the surge arresters as
shown in Figure 102. Figure 21 shows the position of the surge arresters.
Procedure:
1. Open doors in Section +C1.
2. Open corresponding cable ducts.
3. Connect the irradiation sensor according to Figure 102.
4. Close cable ducts.

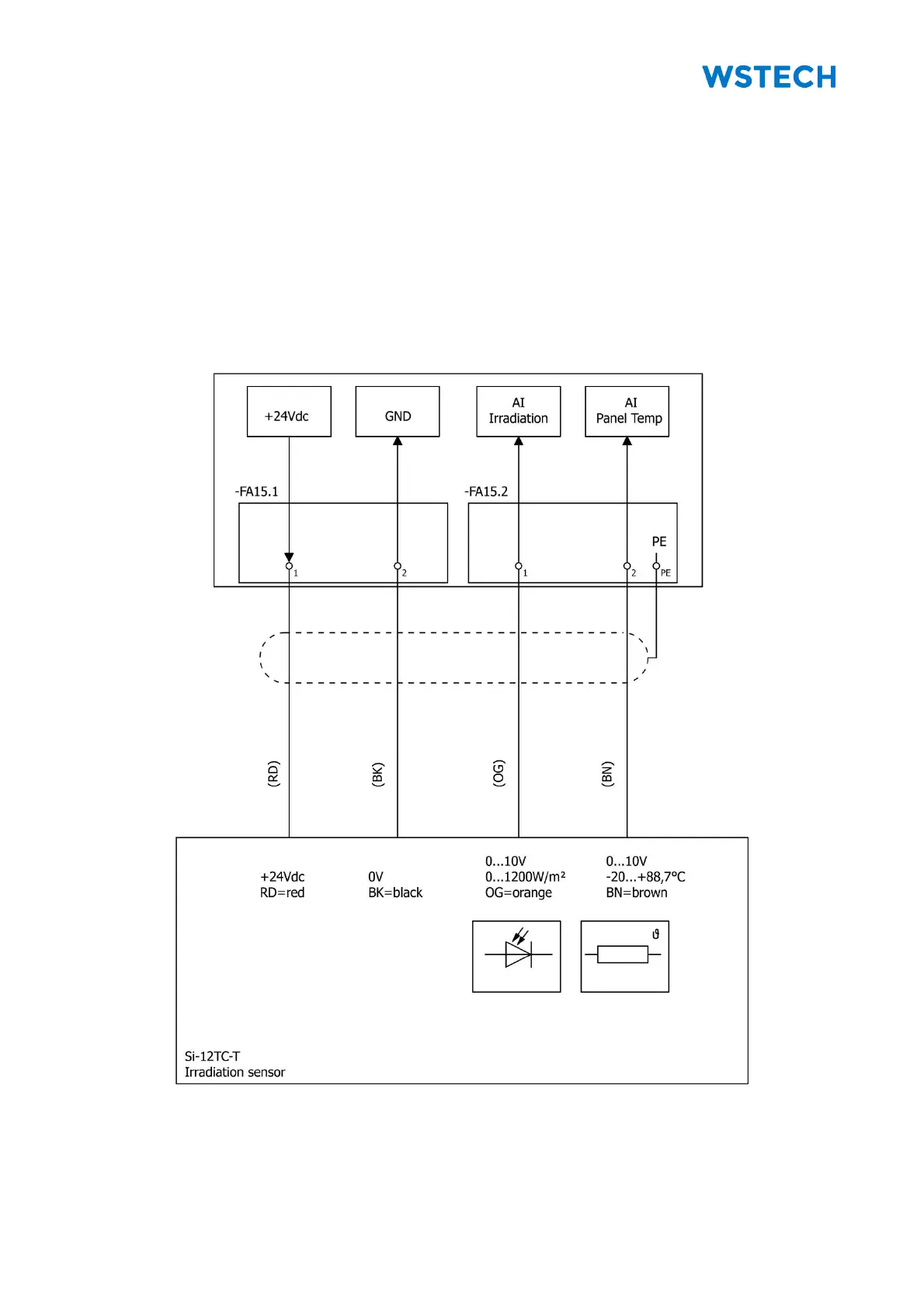

Figure 102: Connection of the irradiation and temperature sensor
