4.3.1.3 Check Condition of Door Gaskets and Screw Connections

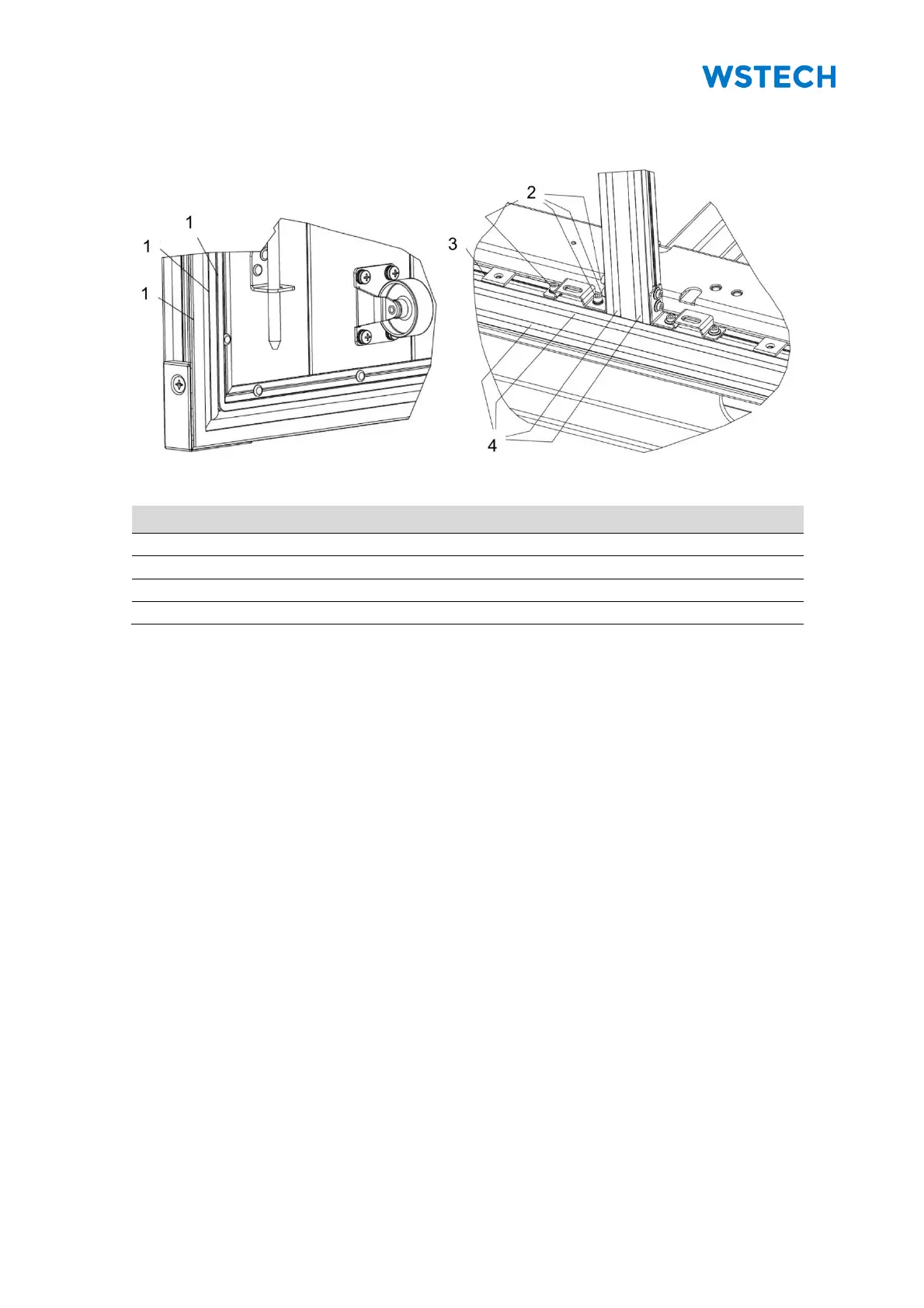

Figure 56: Condition of door gaskets
Figure 57: Check of screw connections
Pos.
Description
1
Door gaskets
2
Assembled rod’s grips
3
Wheel support
4
Plastic cover profile
NOTICE: It is forbidden to modify or remove the plastic cover profile (Pos. 4). Removal
of the profile or modification will cause the loss of the warranty of IP tightness.
Procedure:
1. Ensure that the product has no mechanical damage.
2. Check the condition of the gaskets (Figure 56).
3. Check and tighten screws for wheel support (Pos. 3) and of each assembled
rod’s grip (Pos. 2).
4. Tighten screws with a torque of 7 Nm.
