WSTECH APS Series - Figure 18: Interior View Front

Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Description
APS-Series 120 Operating Instructions v320 EN
Page 38 of 213
NOTICE: The following figures are shown without protective cover.

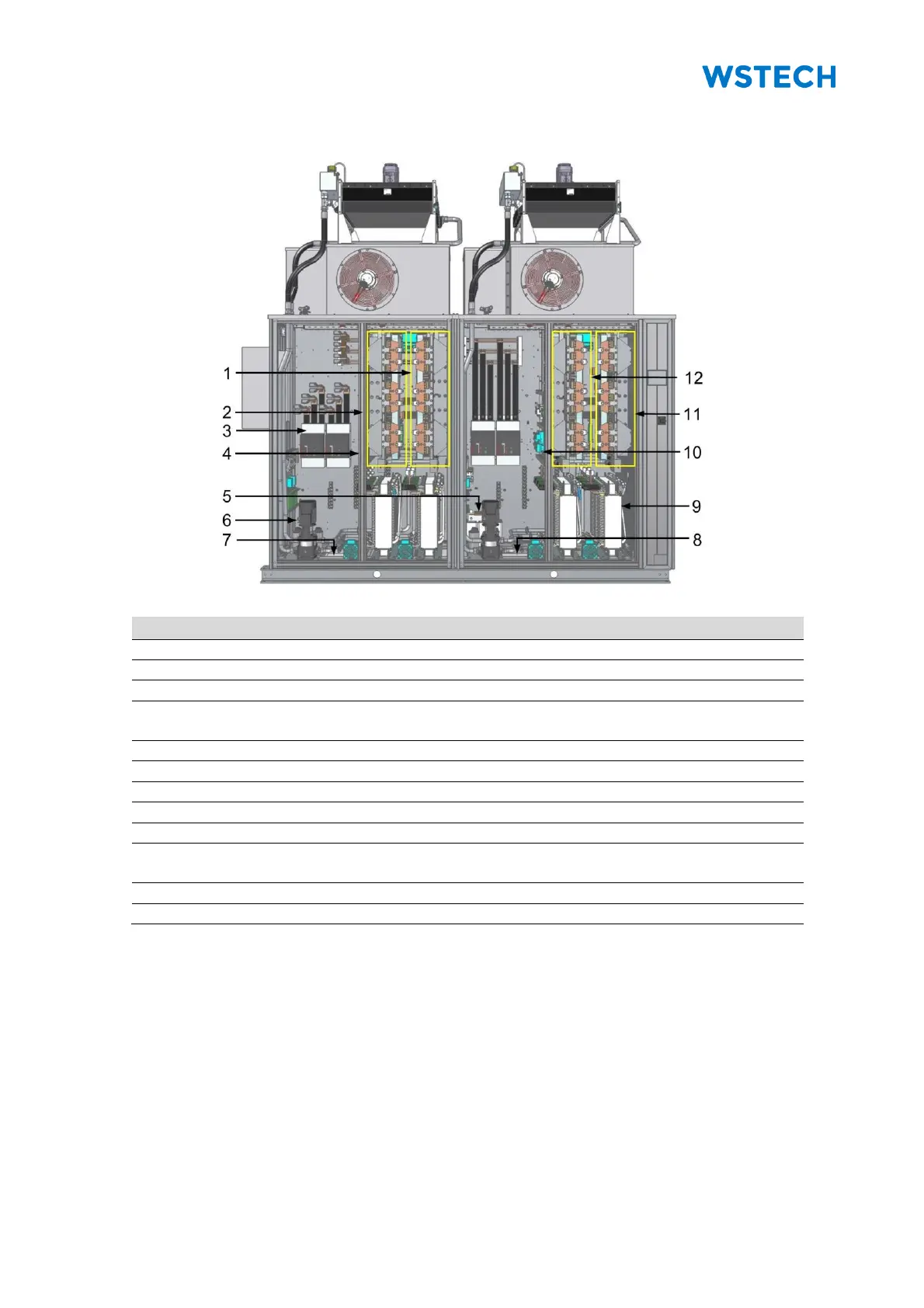

Figure 18: Interior view front
Pos.
Description
1
APU 3
2
APU 4
3
AC switch
4
Surge arrester (-FA211), AC connection,
Fuse (-FC216)
5
Auxiliary transformer (-TA100), behind water pump
6
Water pump
7
Bursting disc Section +C6
8
Bursting disc Section +C3
9
Inductor
10
Surge arrester (-FA111), AC connection,
Fuse (-FC116)
11
APU 1
12
APU 2
