WSTECH APS Series - Figure 79: Earth Connection

Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Installation
APS-Series 120 Operating Instructions v320 EN
Page 97 of 213

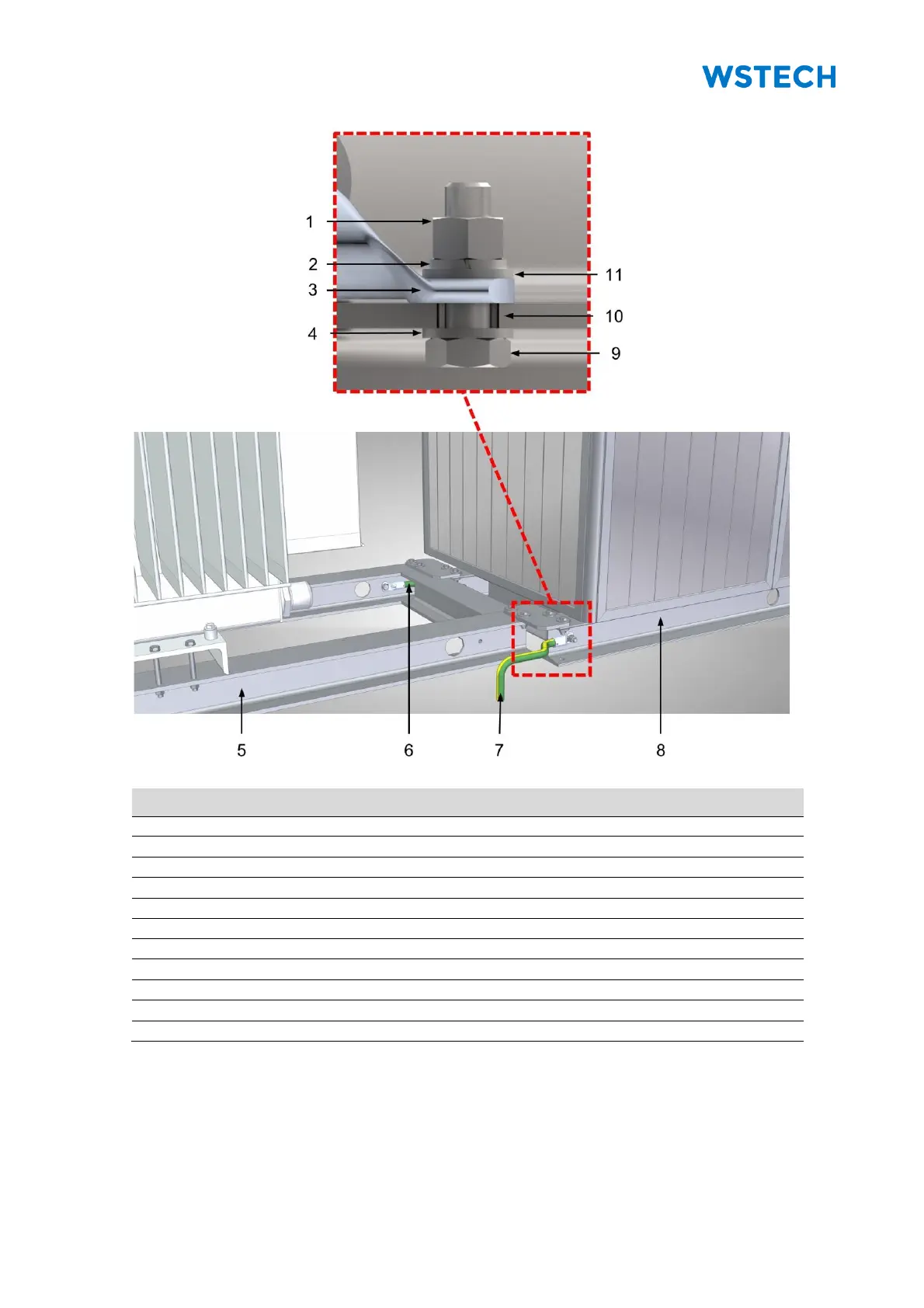

Figure 79: Earth connection
Pos.
Description
1
Hexagon nut
2
Spring lock washer
3
Cable lug
4
Washer
5
MV skid carrier
6
Connection cable
7
Protection conductor for equipotential bonding
8
APS carrier
9
Hexagon screw
10
Drill hole
11
Washer
