WSTECH APS Series - Communication Interfaces

Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Installation
APS-Series 120 Operating Instructions v320 EN
Page 117 of 213
4.8.1 Communication Interfaces
Procedure:
1. Open doors in Section +C1.
2. Open corresponding cable ducts
3. Route fiber optic cables for data communication through opening and connect
to the required port (Figure 99).
4. Close cable ducts.

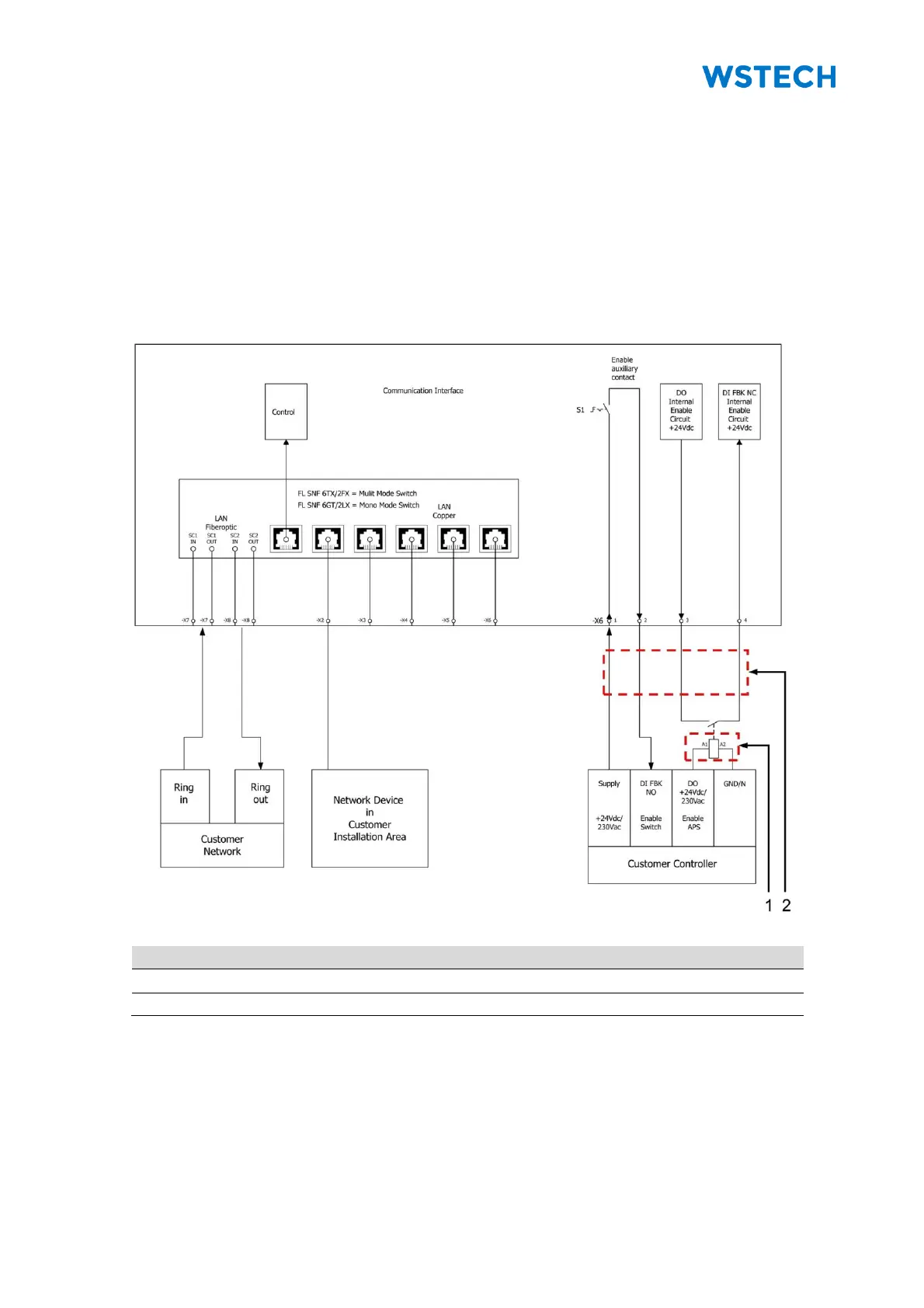

Figure 99: Interfaces for data communication
Pos.
Description
1
Coupling relay (must be mounted inside the APS, Section +C1)
2
Connection lines
