WSTECH APS Series - Figure 49: Cable Entry DC Connection (Bottom View)

Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Installation
APS-Series 120 Operating Instructions v320 EN
Page 70 of 213
4.2.6.2 Cable Entry of the DC Connection

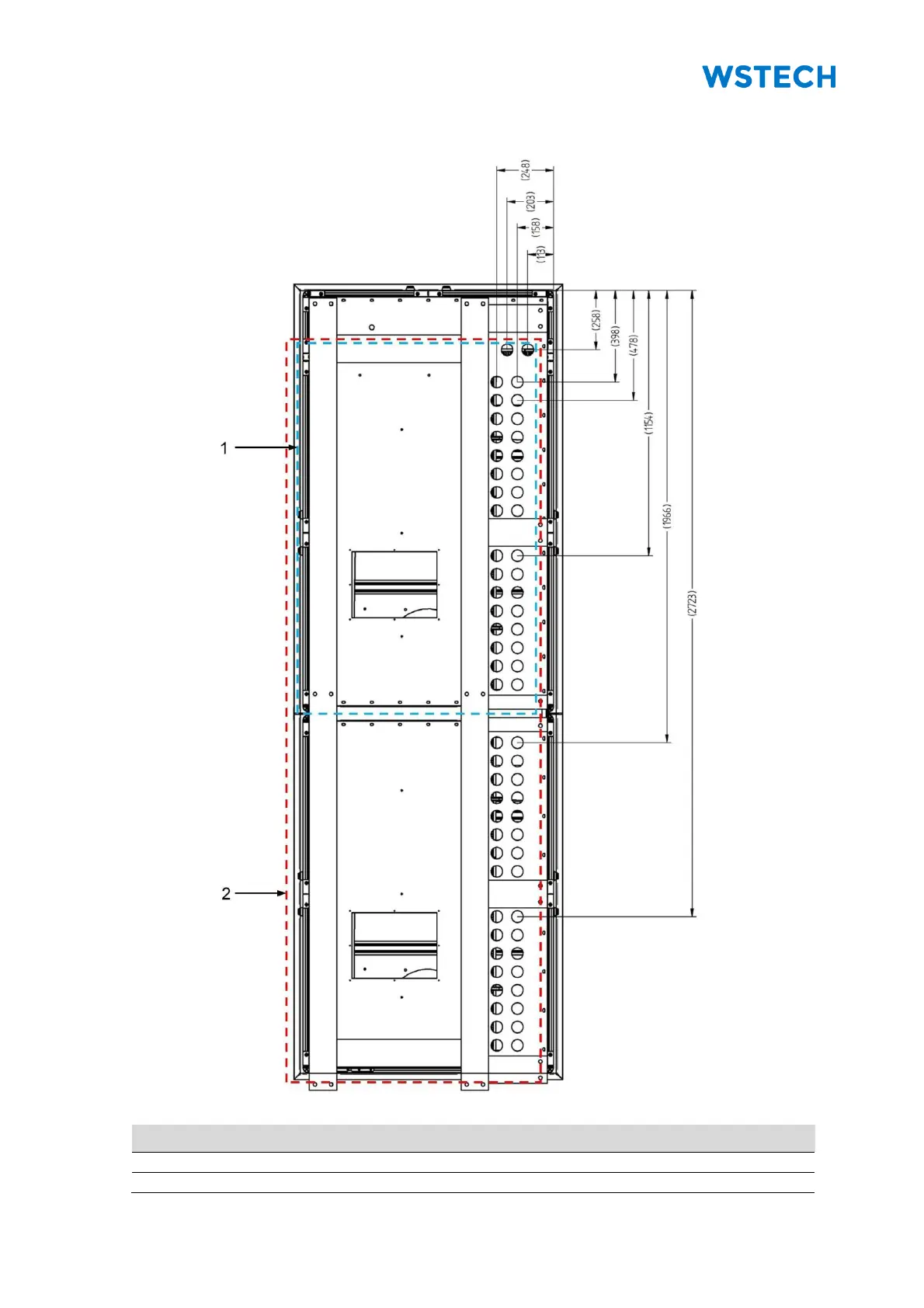

Figure 49: Cable entry DC connection (bottom view)
Pos.
Description
1
Cable entry DC connection (APS with 1-2 APUs)
2
Cable entry DC connection (APS with 3-4 APUs)
