4.4.1.1 Applying the Cabinet Sealing
NOTICE
Damage to the product due to ingress of moisture!
Incorrect sealing of the cooling tower leads to leakages.
• Ensure that the construction adhesive around the air ducts
completely sealed against the cooling tower.
NOTICE: This procedure must only be performed, if the cabinet sealing is missing or
damaged. The construction adhesive can be ordered if required.
Table 12: Required material for one cooling tower – construction adhesive
Quantity
Description
Part No.
Delivery
-
Construction adhesive (Teroson VR 410)
720303
-
Procedure:
1. Seal contact surface at air ducts with cabinet sealing (Figure 67).
NOTICE: Observe the instructions for processing the assembly paste and construction
adhesive.
2. Carefully mount the cooling tower (Section 4.4.1).

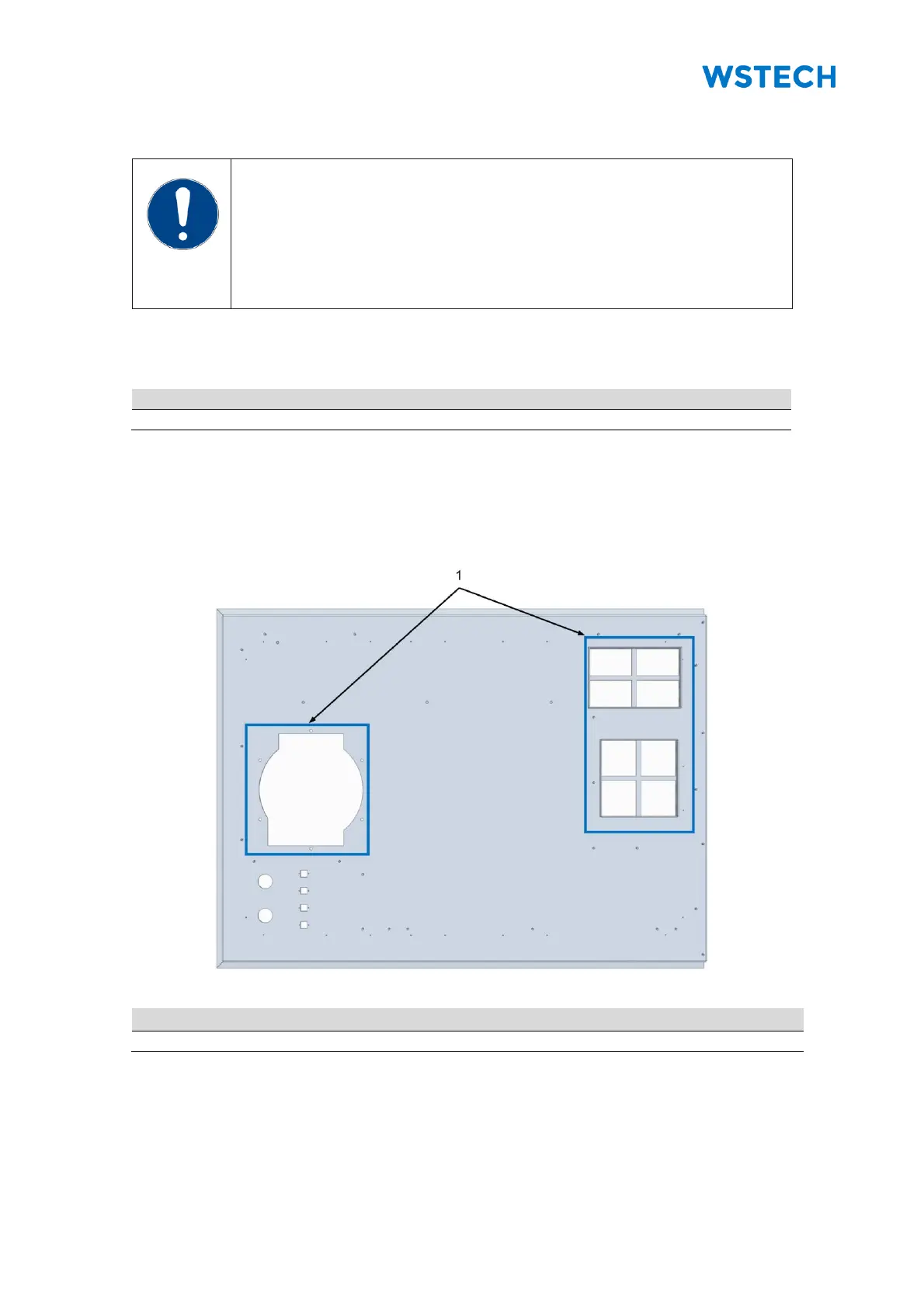

Figure 67: Applying the cabinet sealing on the top cover
Pos.
Description
1
Construction adhesive (approximately width 20 millimetres) (Teroson VR 410)
