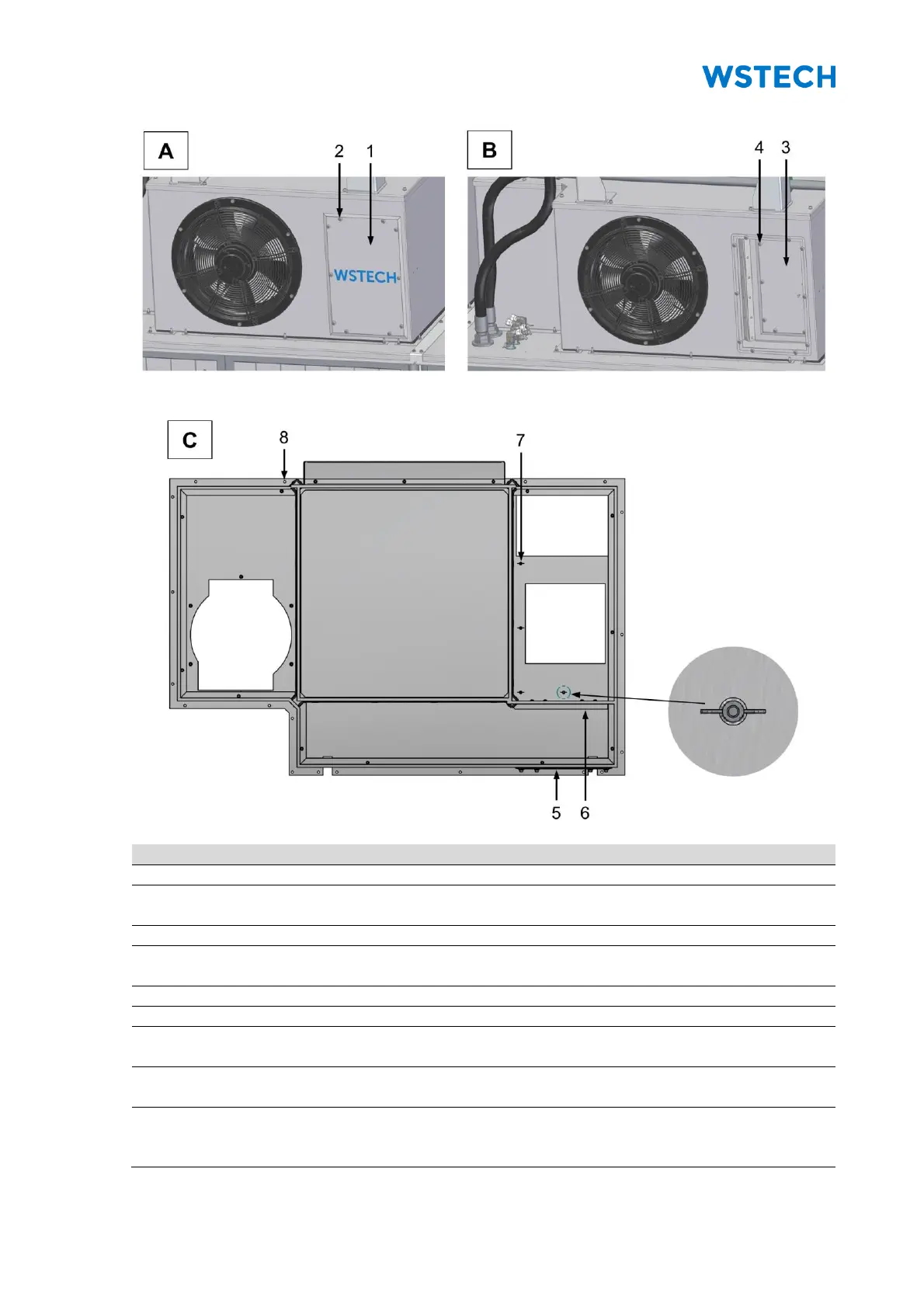

Figure 61: Service access to wet location (with
cover)
Figure 62: Service access to dry location (without cover)
Figure 63: Cooling tower without top cover (top view)
Pos.
Description
1
Service access cover (to wet location)
2
10 x bonded sealing and
10 x M6x16 socket head screws
3
Service access cover (to dry location)
4
10 x bonded sealing and
10 x M6x16 socket head screws
5
Service access to wet location
6
Service access to dry location
7
4 x bonded sealing,
4 x spring lock washer and 4 x M6 wing nut
8
19 x bonded sealing,
19 x spring lock washer and 19 x hexagon nut
9
Only valid for option Seismic IEEE 693
23 x bonded sealing,
23 x spring lock washer and 23 x hexagon nut
