Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Packaging, Transport, Delivery, Storage
APS-Series 120 Operating Instructions v320 EN
Page 43 of 213
3.1.1.1 Cooling Tower Packaging Information
Figure 22 shows the arrangement of components on the pallet.
Requirements for packaging:
• Transportation shall only be carried out on pallets which have been released by
WSTECH GmbH.
• The entire cooling tower surface must rest on the pallet.
• The cooling tower must be secured on the pallet.
• The cooling fluid hoses (1x long, 1 x short) has to wrap in foil and must be
attached to the pipe under the water-air heat exchanger (Pos. 4).
• The cooling fluid vessel must be secured on the pallet
• The steel shafts must be secured on the pallet.
• The cooling tower and separate package must be packed protected from
weathering.

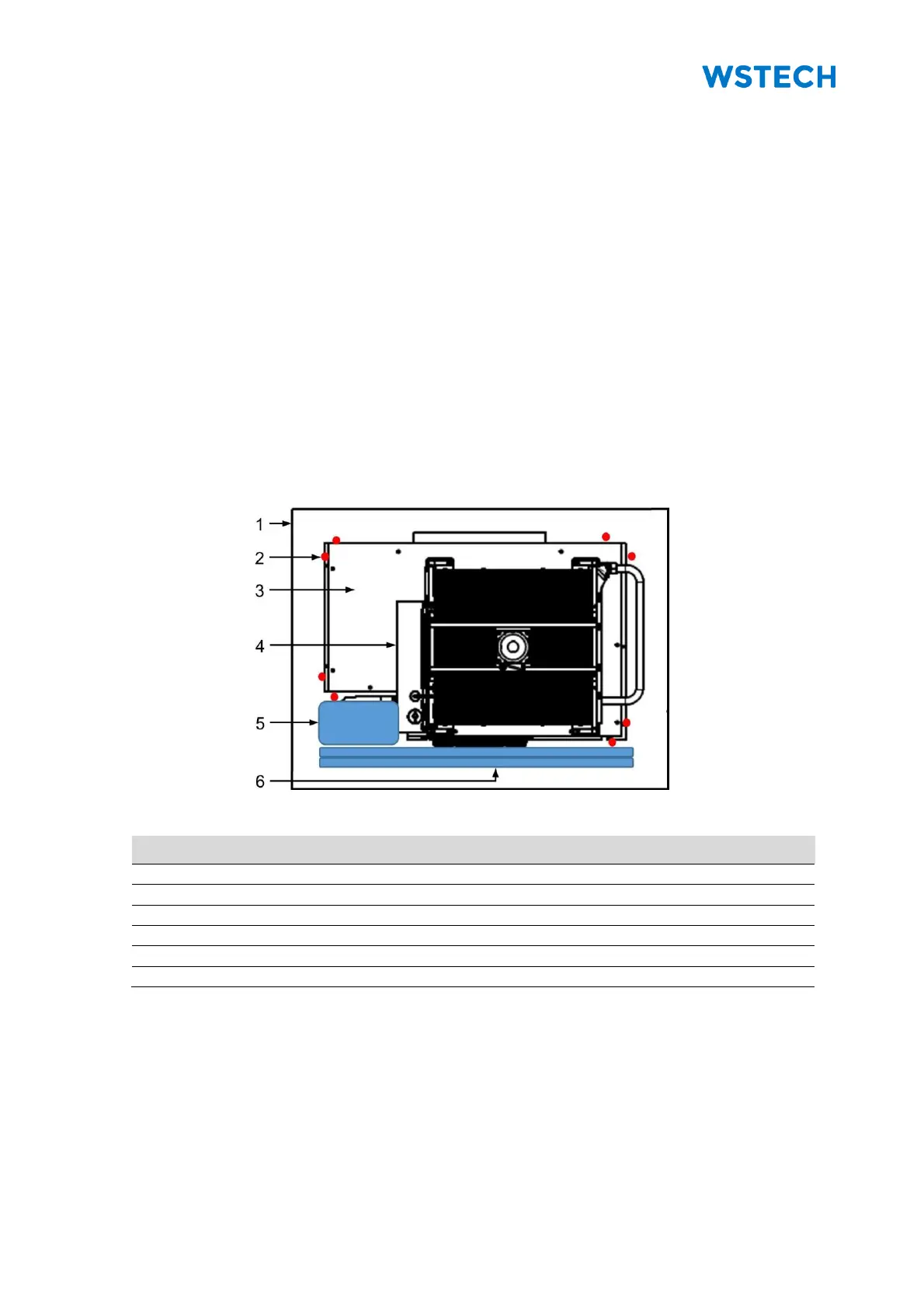

Figure 22: Packaging information – cooling tower
Pos.
Description
1
Pallet
2
Screw and bonded sealing (8 piece)
3
Cooling tower
4
Water-air heat exchanger
5
Cooling fluid vessel
6
Steel shafts (optional)
