WSTECH APS Series - Figure 73: Connection of Coded Plug Connector

Original Operating Instructions
APS Series – Outdoor Hybrid Inverter
Installation
APS-Series 120 Operating Instructions v320 EN
Page 87 of 213

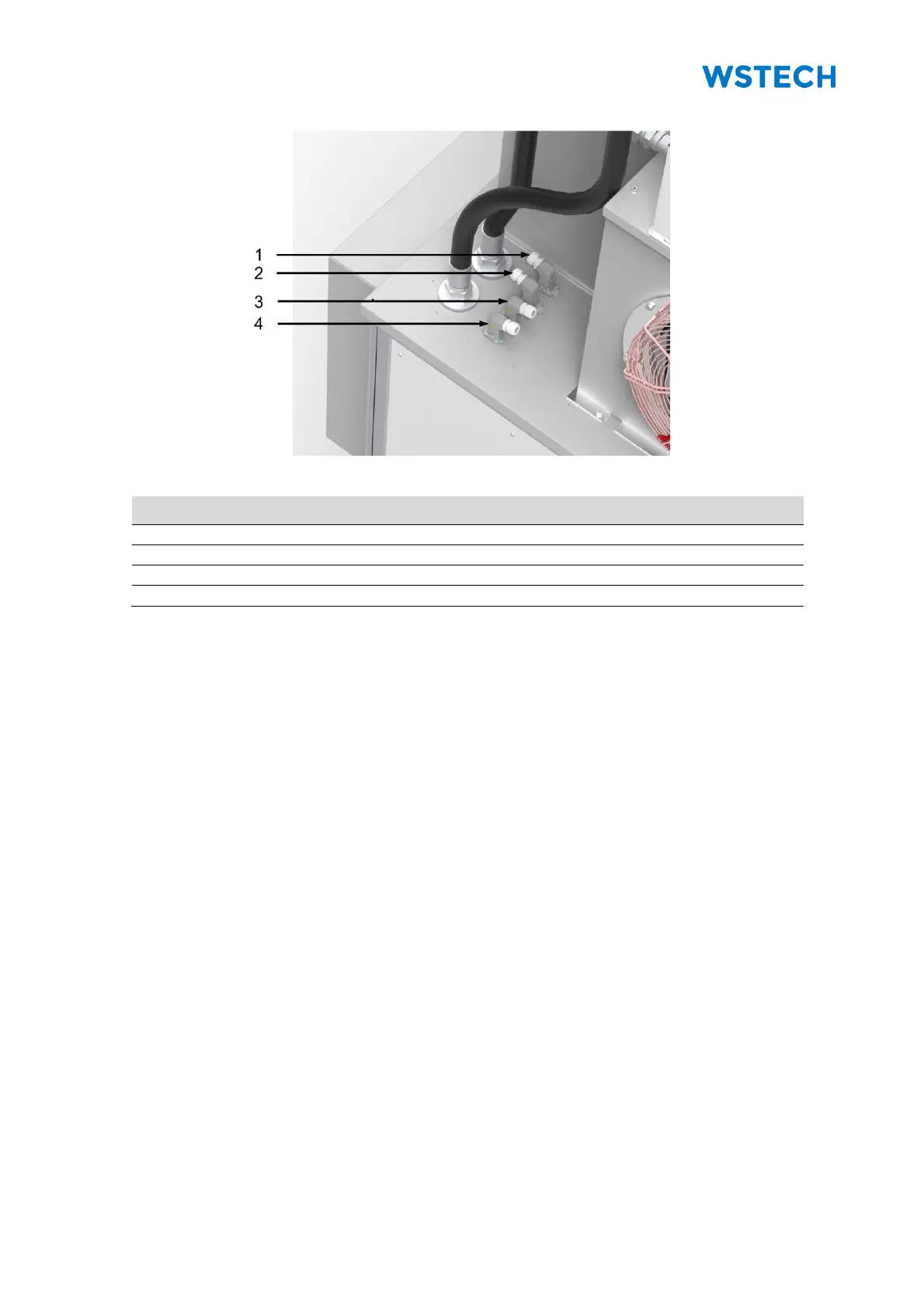

Figure 73: Connection of coded plug connector
Pos.
Description
1
Plug connector tank cooling fluid level
2
Plug connector fan water-air heat exchanger
3
Plug connector fan air-air heat exchanger
4
Plug connector signal cable fan air-air heat exchanger
