Xerox Phaser 3250 Service Manual

5-28 Phaser 3250 Laser Printer Service Manual

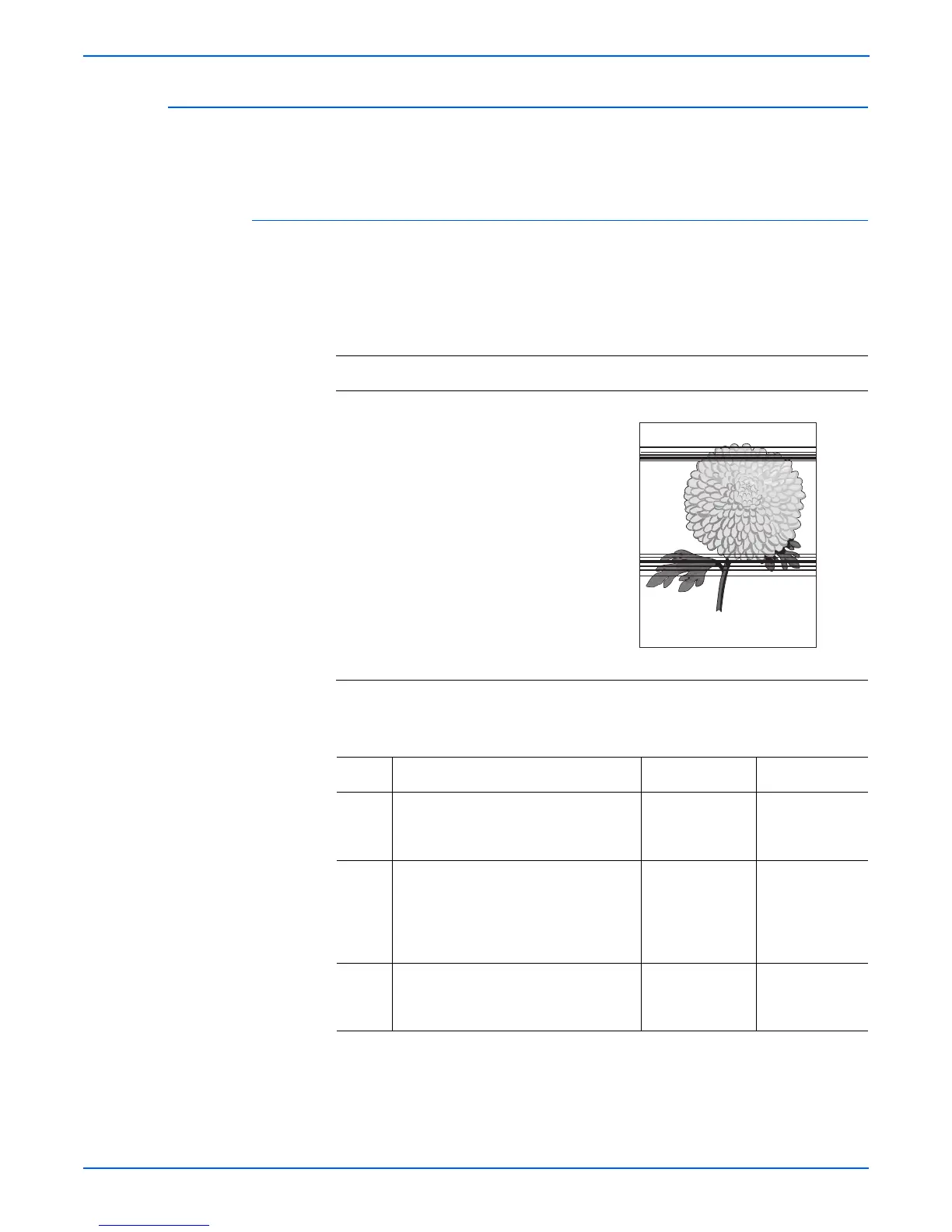

Print-Quality Troubleshooting
Horizontal Black Line and Band
There are black lines running parallel with the leading edge of the print,
perpendicular to the direction of the paper travel.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Print Cartridge, PL1.1.20
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 1.Clean all voltage terminal of the
Print Cartridge.
2.Does the image quality improve?
Complete. Go to step 2.
2 1.Check for a defect occuring at a
regular interval.
2.Are there any bands on the page?
Refer to
“Repeating
Defect
Measurement”
on page 5-13.
Go to step 3.
3 1.Check the Gear of the OPC Drum
(has a small tooth gap) for damage.
2.Is the Gear damaged?
Replace the
Print Cartridge
(
page 8-7).
Complete.
Horizontal Stripes

Xerox Phaser 3250 Specifications

General

Color	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	15 s
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	32 MB
Maximum internal memory	160 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	54 dB
Total input capacity	251 sheets
Maximum input capacity	501 sheets
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Functions	Print
I/O ports	USB 2.0
Device manager	Printer Setting Utility for Windows
Package length	561.33 mm
Depth (imperial)	14.5 \
Width (imperial)	14.3 \
Height (imperial)	9.4 \
Weight (imperial)	26.19 lbs
Power requirements	240 V, 50/60 Hz
Storage drive type	N/A
Hardware scan resolution	1200 x 1200 DPI
Storage temperature (T-T)	32 - 104 °F
Power consumption (active)	400 W
Compatible operating systems	Fedora Core 1, Red Hat 9, SUSE 9 Windows 2000/Vista
Non-operating relative humidity (non-condensing)	20 - 80 %
Country of origin	China
Maximum duty cycle	30000 pages per month
Recommended duty cycle	4000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	70 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 2004/108/EC, 2006/95/EC
Package width	472.43 mm
Package height	342.89 mm
Package weight	11884.3 g

Weight and Dimensions

Depth	369 mm
Width	364 mm
Height	239.2 mm
Dimensions (WxDxH)	364 x 369 x 239.2 mm
