8-62 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly
Electrical

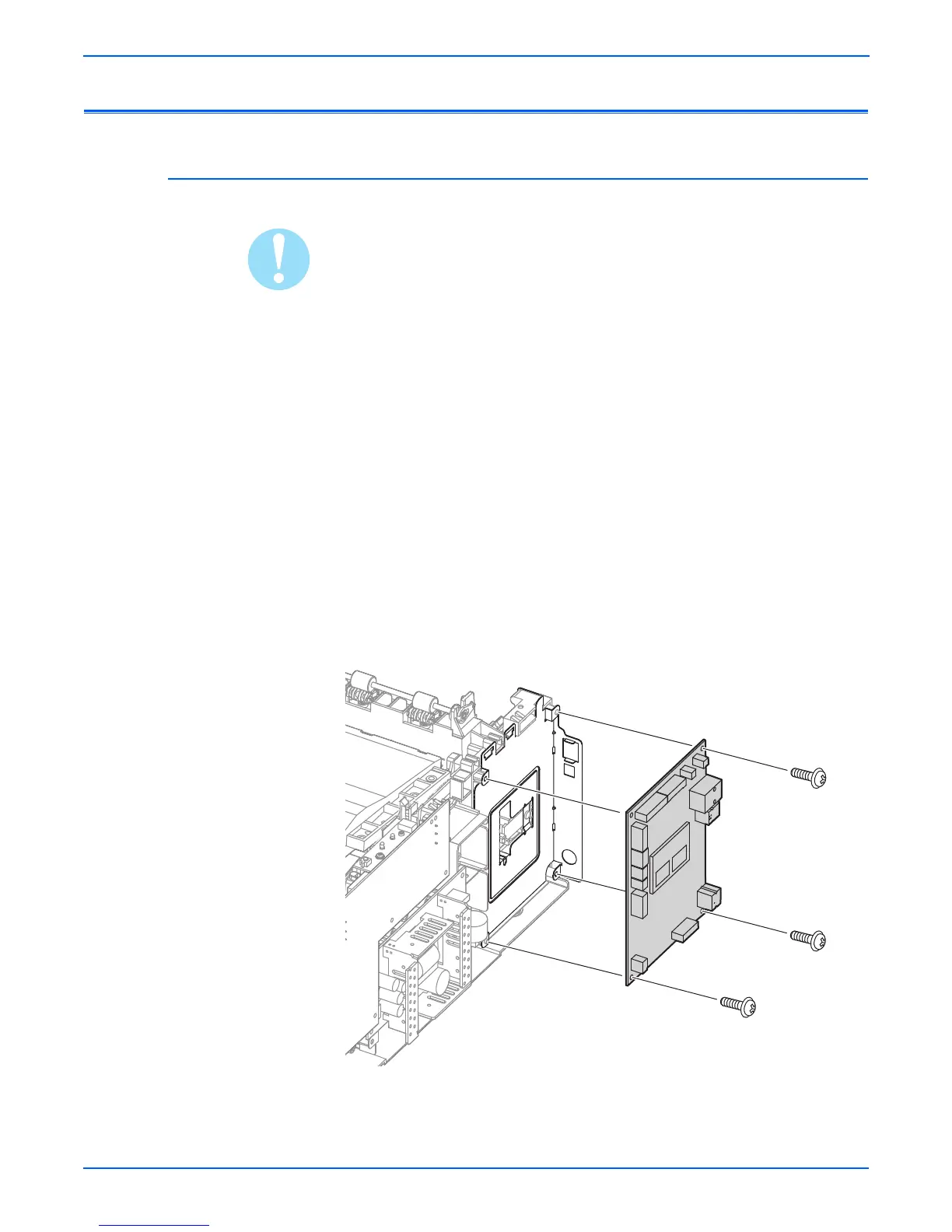

Main Controller Board (PL1.1.2)
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.
Do not touch the green surface underneath the Print Cartridge.
1. Remove Tray 1.
2. Open the Front Cover.
3. Remove the Print Cartridge (page 8-10).
4. Remove the Front Cover (page 8-27).
5. Remove the Duplex Unit (page 8-37).
6. Remove the Rear Cover (page 8-28).
7. Remove the Top Cover (page 8-29).
8. Remove the Right Cover (page 8-34).
9. Disconnect all the wiring harness connectors.
10. Remove 4 screws securing the Main Controller Board.
11. Remove the Main Controller Board.
To Next Page
