Xerox Phaser 3250 - Manual Feeder Cover (PL4.1.3)

8-36 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly
Manual Feeder Cover (PL4.1.3)
1. Remove Tray 1.
2. Open the Manual Feeder Cover.

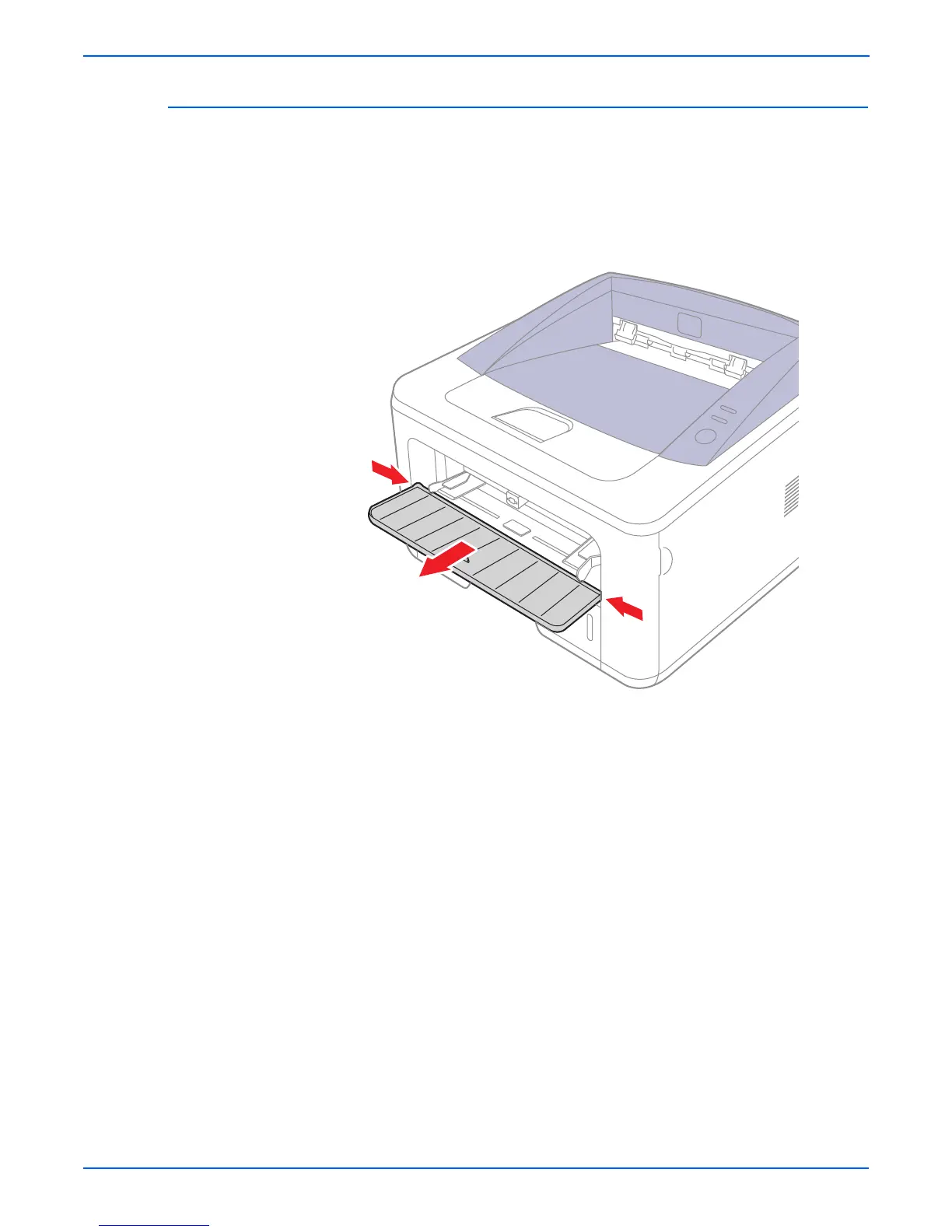

3. Push the Manual Feeder Cover at an angle toward the inside to release
the left and right notches from the Front Cover.
4. Remove the Manual Feeder Cover.
s3250-104
