Xerox Phaser 3250 Service Manual

Phaser 3250 Laser Printer Service Manual 2-13
Theory of Operation
Electrical Components

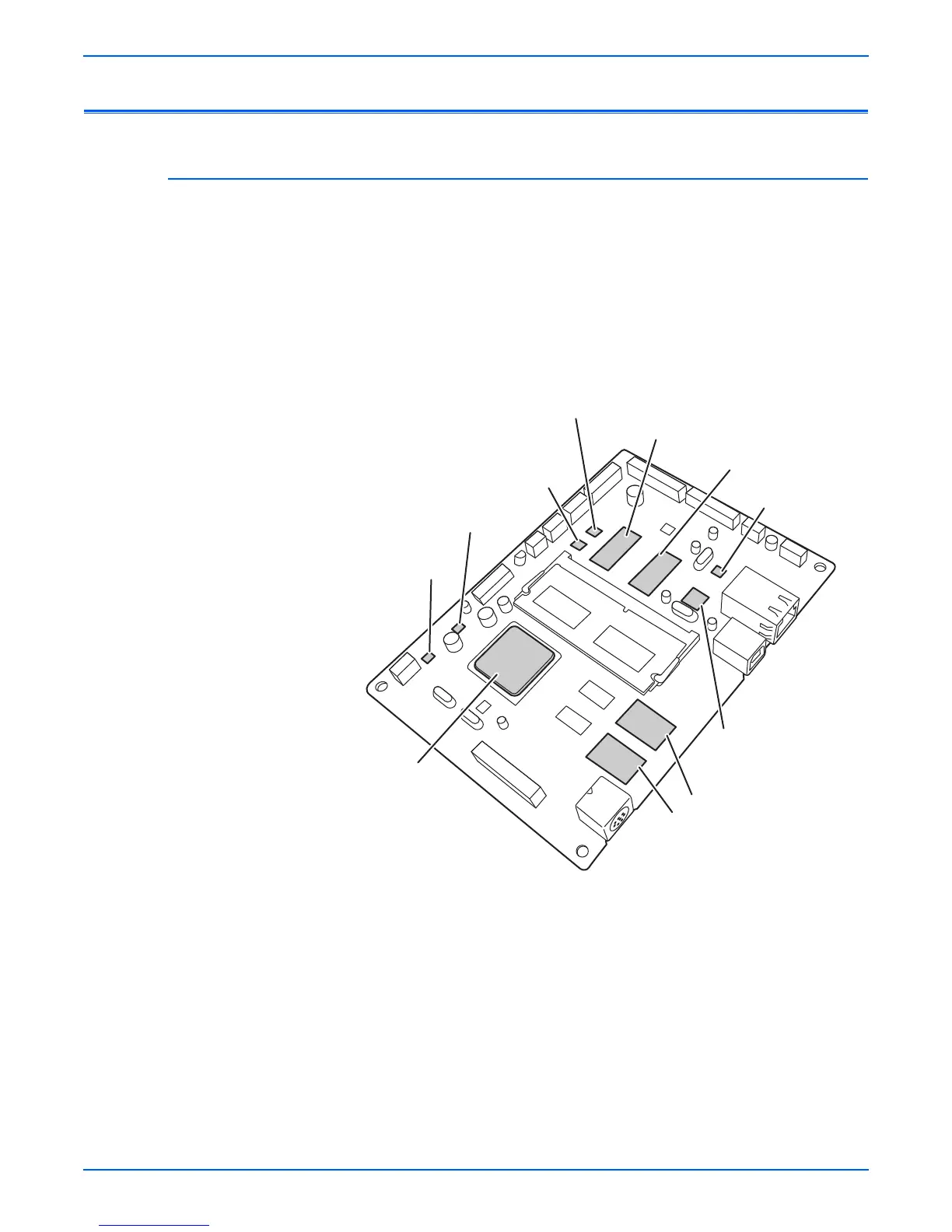

Main Controller Board
The Engine Board and the Controller Board have been integrated into one
Main Controller Board, which consists of the CPU and printer control
functions. The CPU functions as the bus control, I/O handling, drivers, and PC
interface. The Main Controller Board sends the current image video data to
the Laser Unit and manages the electrophotographic printing process.
Circuits on the Main Controller Board drive the Main Motor (paper feed),
Clutch, Pre-Transfer Lamp, Heat Lamp, and Fan.
The signals from the Paper Feed Jam Sensor and Paper Empty Sensor are
inputted to the Main Controller Board.
s3250-028
Ethernet IC
U18 NOR FLASH
U17 NOR FLASH
U8 ASIC
DC to DC
Converter, 1.3V
DC to DC
Converter, 3.3V
U3 EEPROM
U4 EEPROM
U6 SDRAM
U7 SDRAM
USB IC

Xerox Phaser 3250 Specifications

General

Color	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	15 s
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	32 MB
Maximum internal memory	160 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	54 dB
Total input capacity	251 sheets
Maximum input capacity	501 sheets
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Functions	Print
I/O ports	USB 2.0
Device manager	Printer Setting Utility for Windows
Package length	561.33 mm
Depth (imperial)	14.5 \
Width (imperial)	14.3 \
Height (imperial)	9.4 \
Weight (imperial)	26.19 lbs
Power requirements	240 V, 50/60 Hz
Storage drive type	N/A
Hardware scan resolution	1200 x 1200 DPI
Storage temperature (T-T)	32 - 104 °F
Power consumption (active)	400 W
Compatible operating systems	Fedora Core 1, Red Hat 9, SUSE 9 Windows 2000/Vista
Non-operating relative humidity (non-condensing)	20 - 80 %
Country of origin	China
Maximum duty cycle	30000 pages per month
Recommended duty cycle	4000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	70 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 2004/108/EC, 2006/95/EC
Package width	472.43 mm
Package height	342.89 mm
Package weight	11884.3 g

Weight and Dimensions

Depth	369 mm
Width	364 mm
Height	239.2 mm
Dimensions (WxDxH)	364 x 369 x 239.2 mm
