10-6 Phaser 3250 Laser Printer Service Manual
Plug/Jack and Wiring Diagrams

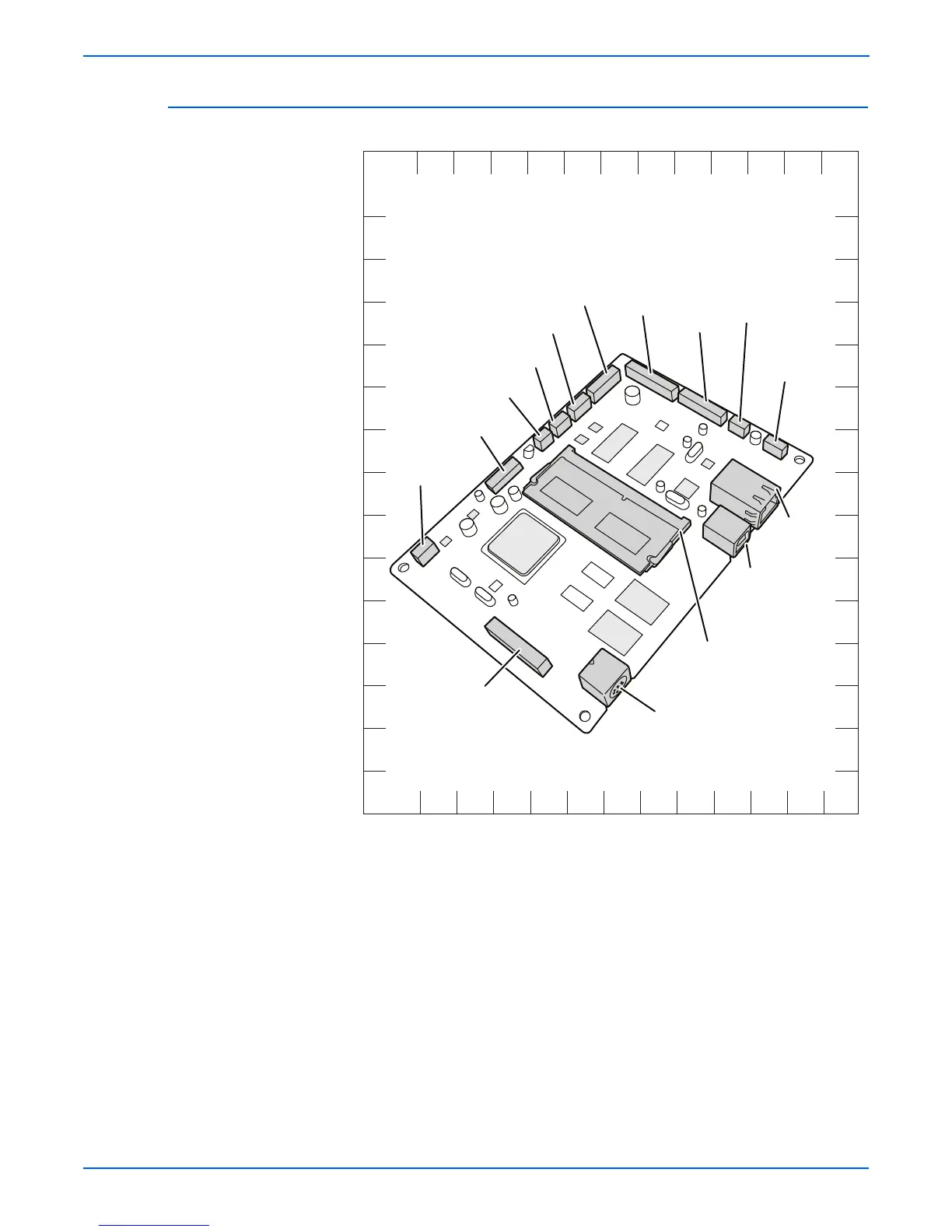

Map 1 - Main Controller Board
A
132
133
134
135
136
137
138
139
140
141
142
143
144
145
131
BCDEFGHI JKL
s3250-017
CN1 LSU
CN3 DC Fan (LSU Fan)
Interlock Switch
CN6 Thermistor
Exit Sensor
CN9
Ethernet
CN11 USB
CN15 RAM DIMM
CN4 HVPS
CN13 Paper Empty Sensor
Duplex Registration Sensor
Paper Feed Sensor
CN18 Control Panel
CN8 CRUM
CN12 Main Fan
CN10 LVPS
CN17 DCU
CN2 Main Motor
Pick Up Solenoid
Registration Clutch
CN14 Optional Tray 2
