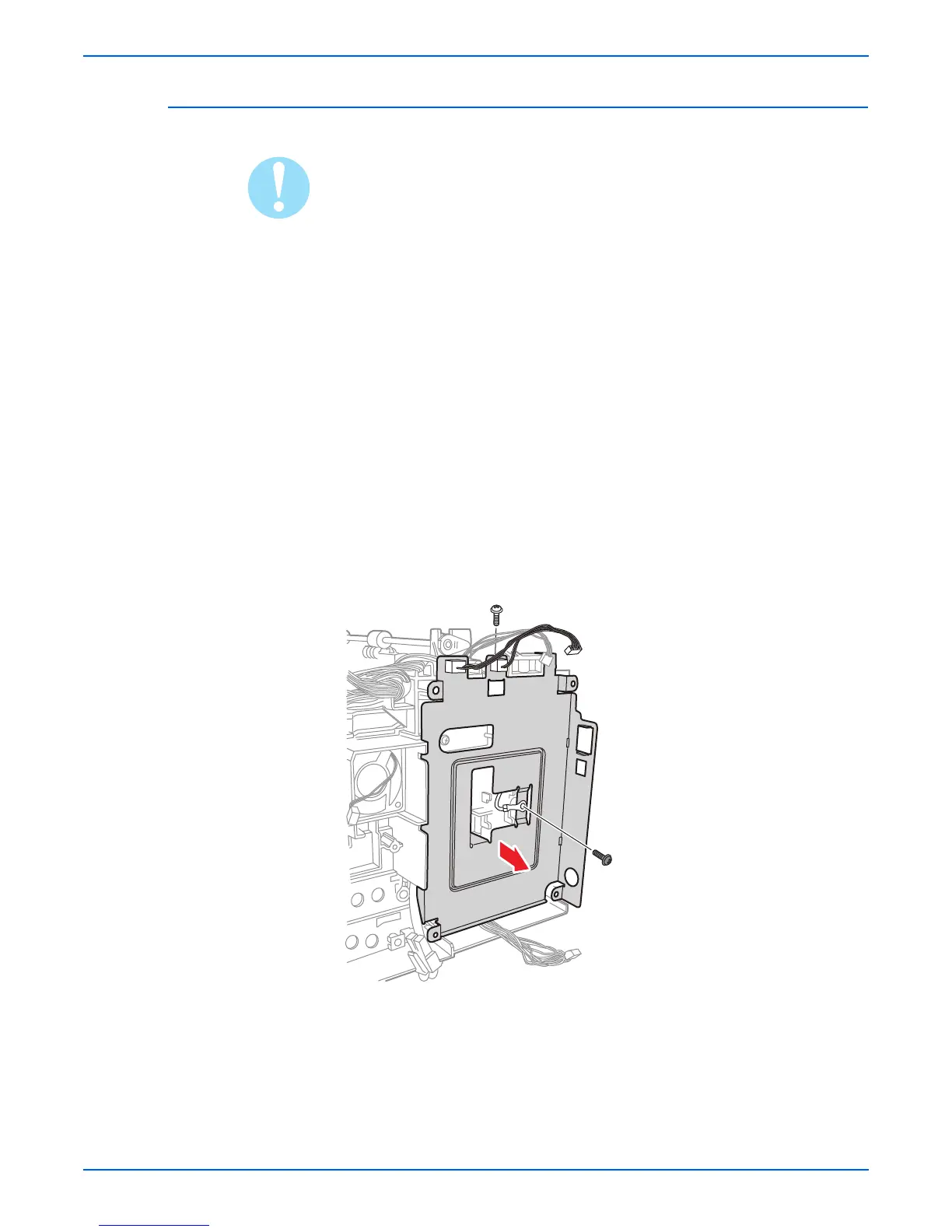

Xerox Phaser 3250 Service Manual

Phaser 3250 Laser Printer Service Manual 8-63
Service Parts Disassembly
Controller Shield (PL1.1.1)
Caution
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.
Do not touch the green surface underneath the Print Cartridge.
1. Remove Tray 1.
2. Open the Front Cover.
3. Remove the Print Cartridge (page 8-10).
4. Remove the Front Cover (page 8-27).
5. Remove the Duplex Unit (page 8-37).
6. Remove the Rear Cover (page 8-28).
7. Remove the Top Cover (page 8-29).
8. Remove the Right Cover (page 8-34).
9. Remove the Main Controller Board (page 8-62).
10. Disconnect the 2 wiring harness connectors on the back of the Controller
Shield.
11. Remove 2 screws securing the Controller Shield.
12. Wiggle the Controller Shield to release the Controller Shield from the
printer frame.
Replacement Note
Ensure to secure the ground wire between the Controller Shield and
the screw.
s3250-127
