Xerox Phaser 3250 Service Manual

8-16 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly

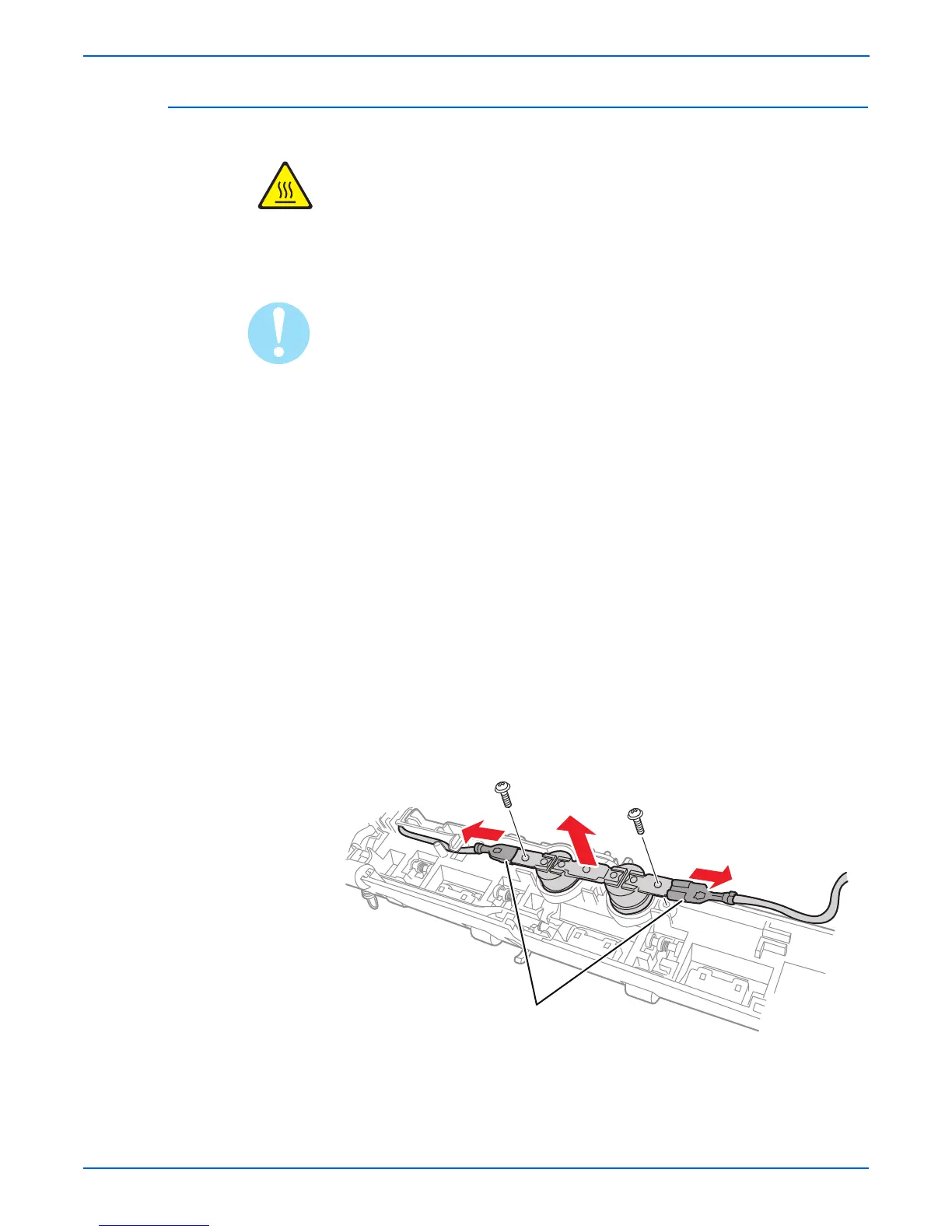

Thermostat (PL9.1.7)
Warning
The Fuser may be hot. Turn the printer power Off and allow at least 5 minutes
for the Fuser to cool before removing the Fuser.
Caution
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.
Do not touch the green surface underneath the Print Cartridge.
1. Remove Tray 1.
2. Open the Front Cover.
3. Remove the Print Cartridge (page 8-10).
4. Remove the Front Cover (page 8-27).
5. Remove the Duplex Unit (page 8-37).
6. Remove the Rear Cover (page 8-28).
7. Remove the Rear Guide Assembly (page 8-59).
8. Remove the Top Cover (page 8-29).
9. Remove the Fuser (page 8-13).
10. Remove 2 screws securing the Thermostat to the Fuser Cover.
11. Lift the Thermostat away from the Fuser Cover.
12. Disconnect the left and right connectors from the wiring harnesses.
13. Remove the Thermostat.
s3250-088
Connectors

Xerox Phaser 3250 Specifications

General

Color	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	15 s
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	32 MB
Maximum internal memory	160 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	54 dB
Total input capacity	251 sheets
Maximum input capacity	501 sheets
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Functions	Print
I/O ports	USB 2.0
Device manager	Printer Setting Utility for Windows
Package length	561.33 mm
Depth (imperial)	14.5 \
Width (imperial)	14.3 \
Height (imperial)	9.4 \
Weight (imperial)	26.19 lbs
Power requirements	240 V, 50/60 Hz
Storage drive type	N/A
Hardware scan resolution	1200 x 1200 DPI
Storage temperature (T-T)	32 - 104 °F
Power consumption (active)	400 W
Compatible operating systems	Fedora Core 1, Red Hat 9, SUSE 9 Windows 2000/Vista
Non-operating relative humidity (non-condensing)	20 - 80 %
Country of origin	China
Maximum duty cycle	30000 pages per month
Recommended duty cycle	4000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	70 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 2004/108/EC, 2006/95/EC
Package width	472.43 mm
Package height	342.89 mm
Package weight	11884.3 g

Weight and Dimensions

Depth	369 mm
Width	364 mm
Height	239.2 mm
Dimensions (WxDxH)	364 x 369 x 239.2 mm
