Phaser 3250 Laser Printer Service Manual 8-57
Service Parts Disassembly
Xerographics
Laser Unit (PL1.1.12)
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.
Do not touch the green surface underneath the Print Cartridge.
1. Remove Tray 1.
2. Open the Front Cover.
3. Remove the Print Cartridge (page 8-10).
4. Remove the Front Cover (page 8-27).
5. Remove the Duplex Unit (page 8-37).
6. Remove the Rear Cover (page 8-28).
7. Remove the Top Cover (page 8-29).
8. Remove the Right Cover (page 8-34).

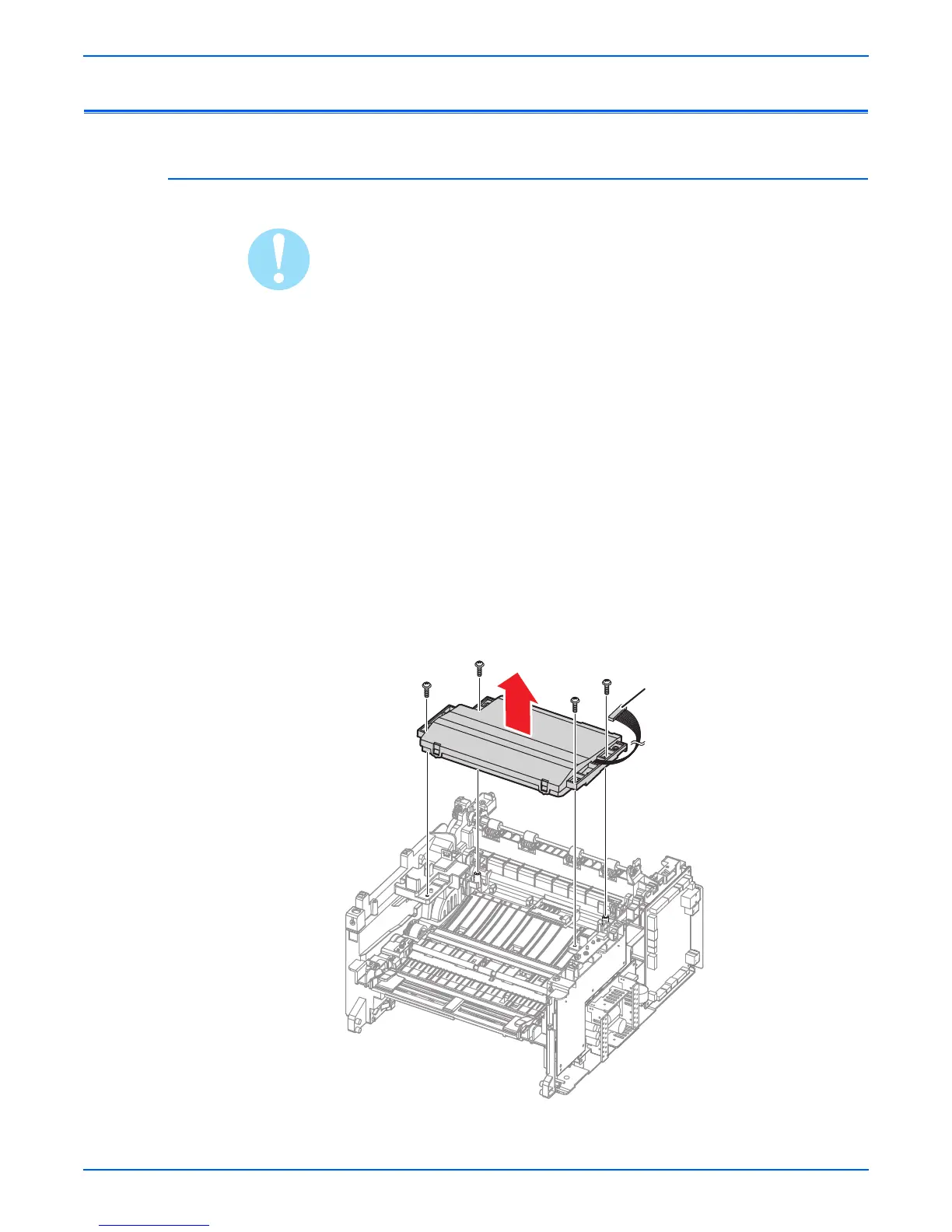

9. Disconnect the Laser Unit wiring harness CN1 connector.
10. Remove 4 screws securing the Laser Unit.
11. Remove the Laser Unit.
To Next Page
