8-56 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly

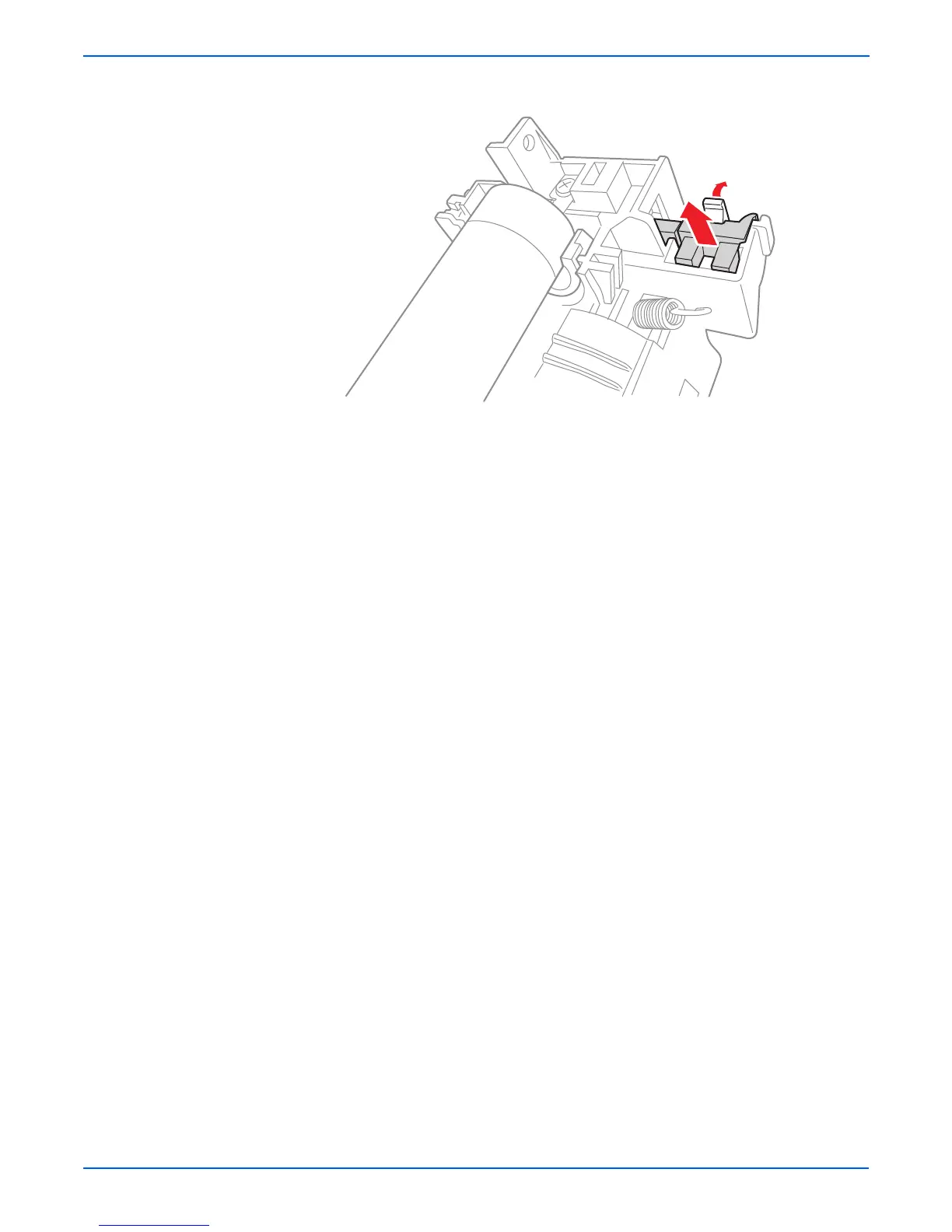

11. Release the latch securing the Exit Sensor and remove the Exit Sensor.
s3250-148
