Phaser 3250 Laser Printer Service Manual 8-75
Service Parts Disassembly

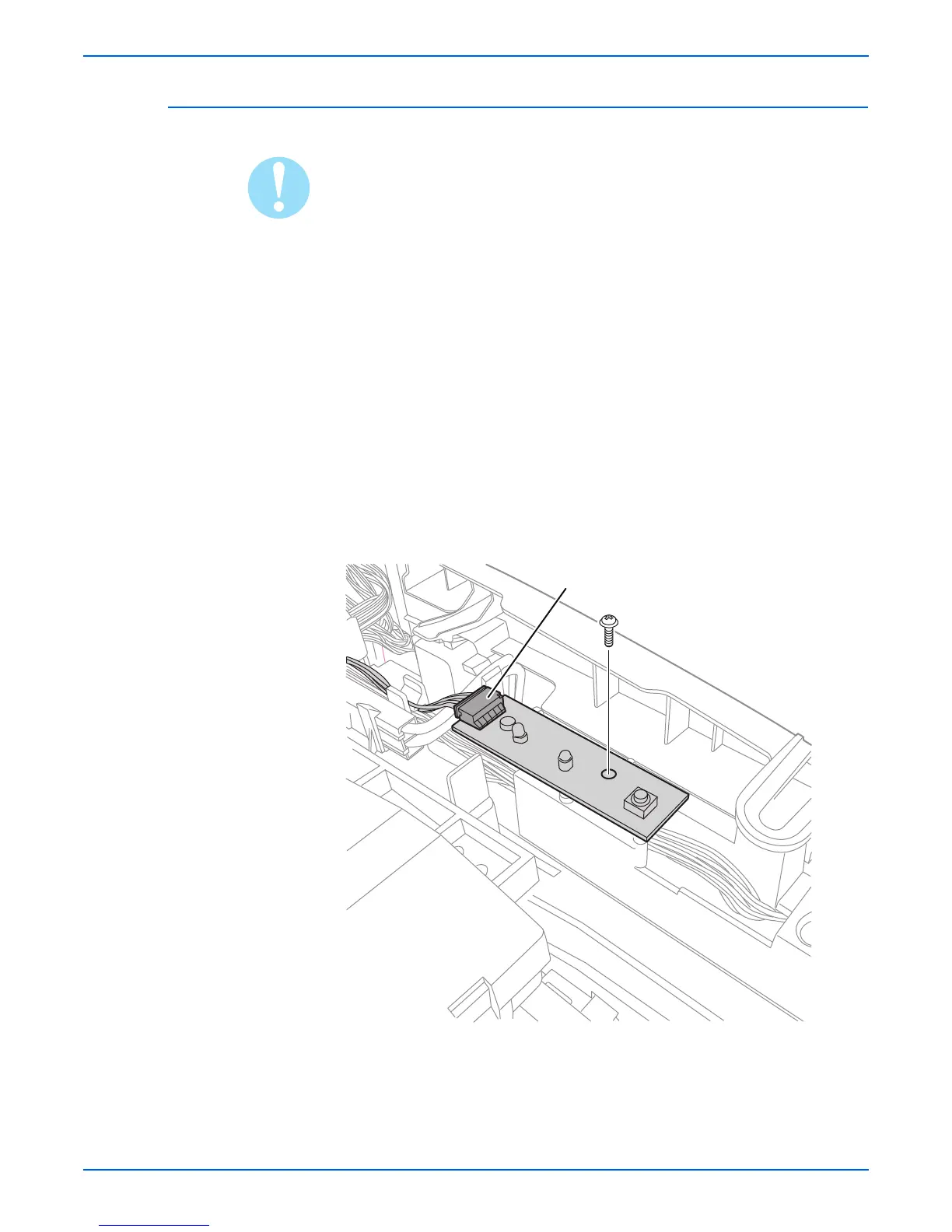

LED Board (PL6.1.44)
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.
Do not touch the green surface underneath the Print Cartridge.
1. Remove Tray 1.
2. Open the Front Cover.
3. Remove the Print Cartridge (page 8-10).
4. Remove the Front Cover (page 8-27).
5. Remove the Duplex Unit (page 8-37).
6. Remove the Rear Cover (page 8-28).
7. Remove the Top Cover (page 8-29).
8. Disconnect the LED Board wiring harness connector.
9. Remove 1 screw securing the LED Board.
10. Remove the LED Board.
