Xerox Phaser 3250 - Paper Feeder; Registration Clutch (PL6.1.18)

8-38 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly
Paper Feeder
Registration Clutch (PL6.1.18)
Caution
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.
Do not touch the green surface underneath the Print Cartridge.
1. Remove Tray 1.
2. Open the Front Cover.
3. Remove the Print Cartridge (page 8-10).
4. Remove the Front Cover (page 8-27).
5. Remove the Duplex Unit (page 8-37).
6. Remove the Rear Cover (page 8-28).
7. Remove the Top Cover (page 8-29).
8. Remove the Left Cover (page 8-32).
9. Remove the Drive Assembly (page 8-60).
10. Remove 3 screws securing the Feed Bracket (PL6.1.36).
11. Remove the Feed Bracket.
12. Disconnect the black and gray wiring harness connector CN32.
13. Remove the black spacer and the Registration Clutch.

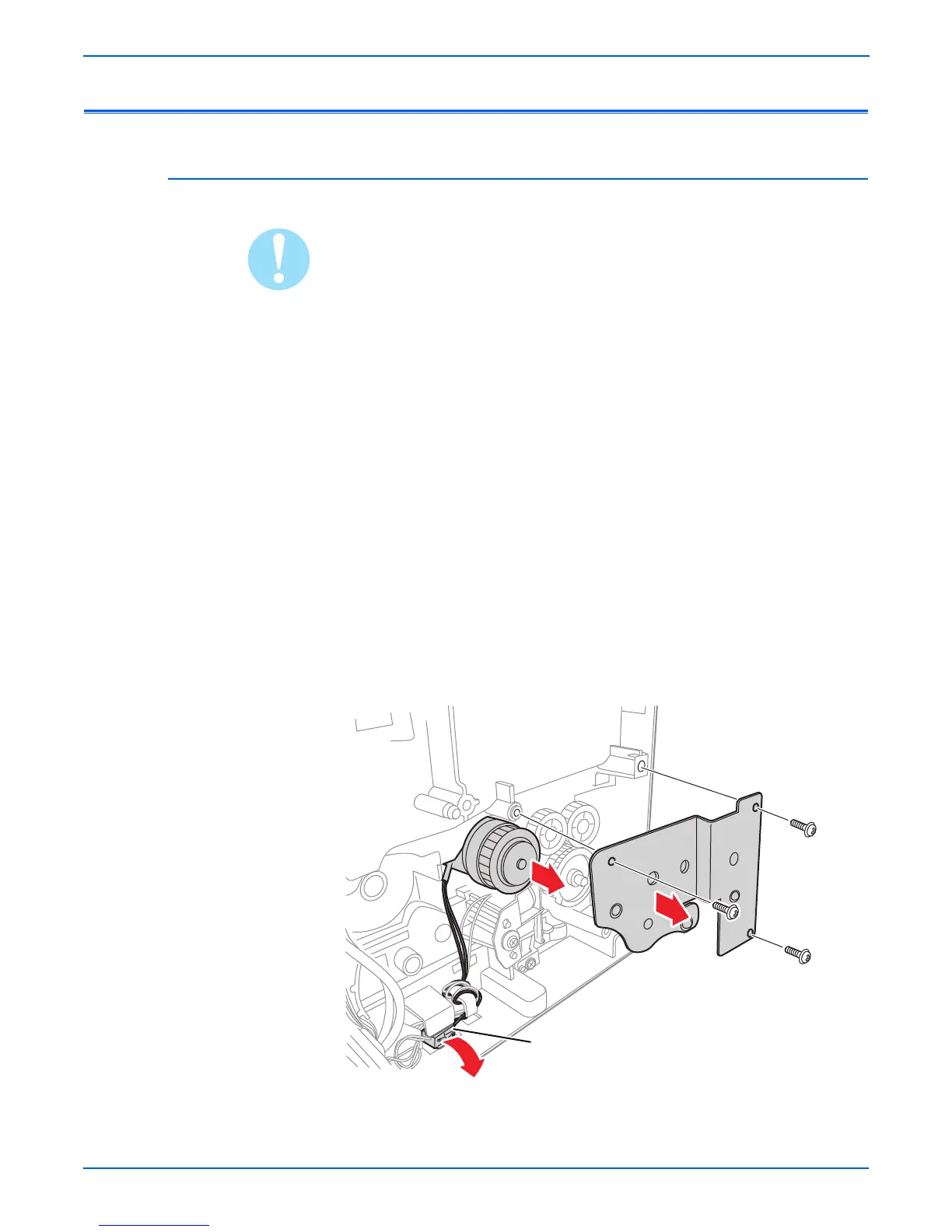

s3250-106
1
2
3
CN32
