8-76 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly
Main ZENER Board (PL6.1.3)
Caution
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.
Do not touch the green surface underneath the Print Cartridge.
1. Remove Tray 1.
2. Open the Front Cover.
3. Remove the Print Cartridge (page 8-10).
4. Remove the Front Cover (page 8-27).
5. Remove the Duplex Unit (page 8-37).
6. Remove the Rear Cover (page 8-28).
7. Remove the Top Cover (page 8-29).
8. Remove the Right Cover (page 8-34).
9. Remove the Main Controller Board (page 8-62).
10. Remove the Controller Shield (page 8-63).

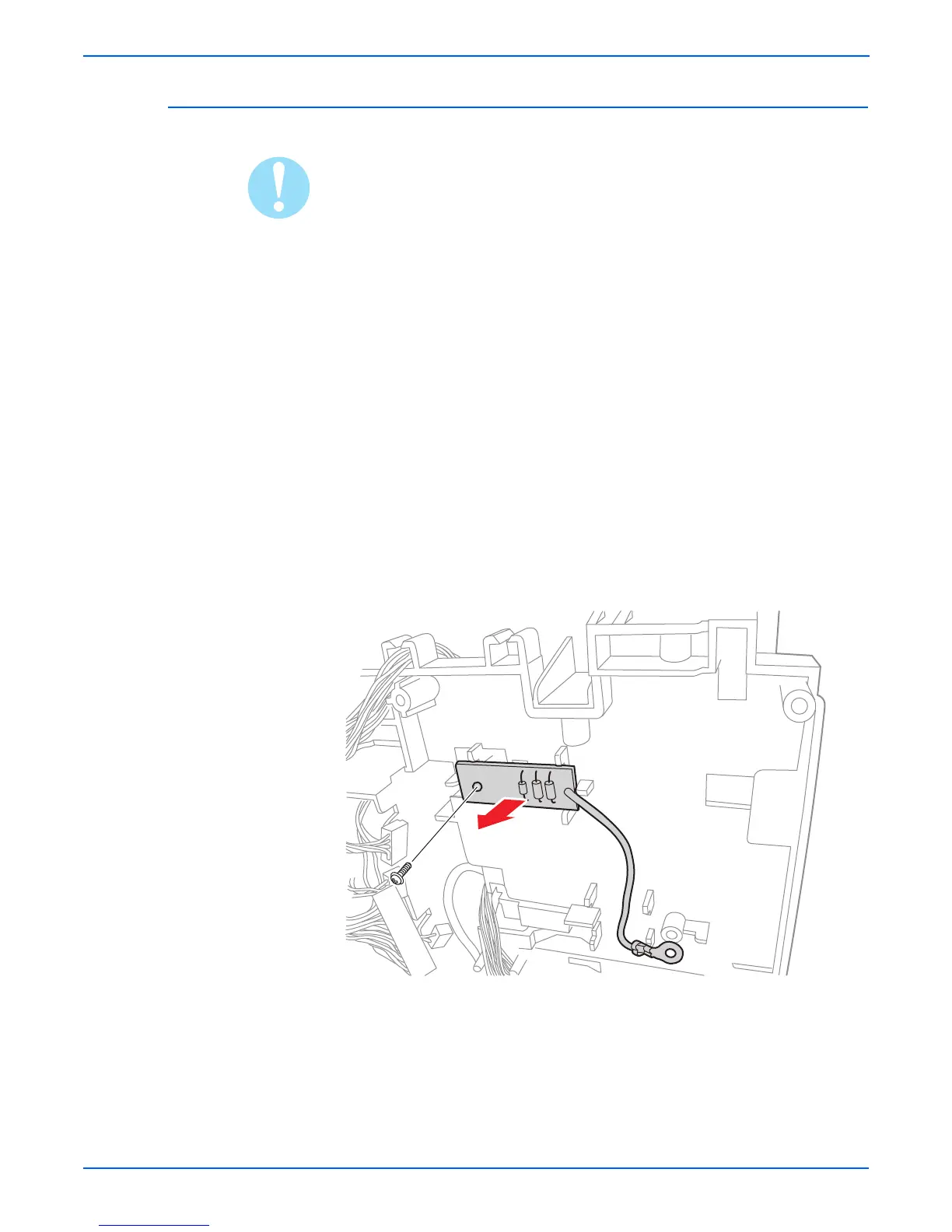

11. Remove 1 screw securing the Main ZENER Board.
12. Remove the Main ZENER Board.
s3250-143
