8-32 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly
Left Cover (PL3.1.2)
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.
Do not touch the green surface underneath the Print Cartridge.
1. Disconnect the Optional Tray 2 cable from the printer (if the optional Tray
2 is connected).
2. Remove Tray 1.
3. Open the Front Cover.
4. Remove the Print Cartridge (page 8-10).
5. Remove the Front Cover (page 8-27).
6. Remove the Duplex Unit (page 8-37).
7. Remove the Rear Cover (page 8-28).
8. Remove the Top Cover (page 8-29).

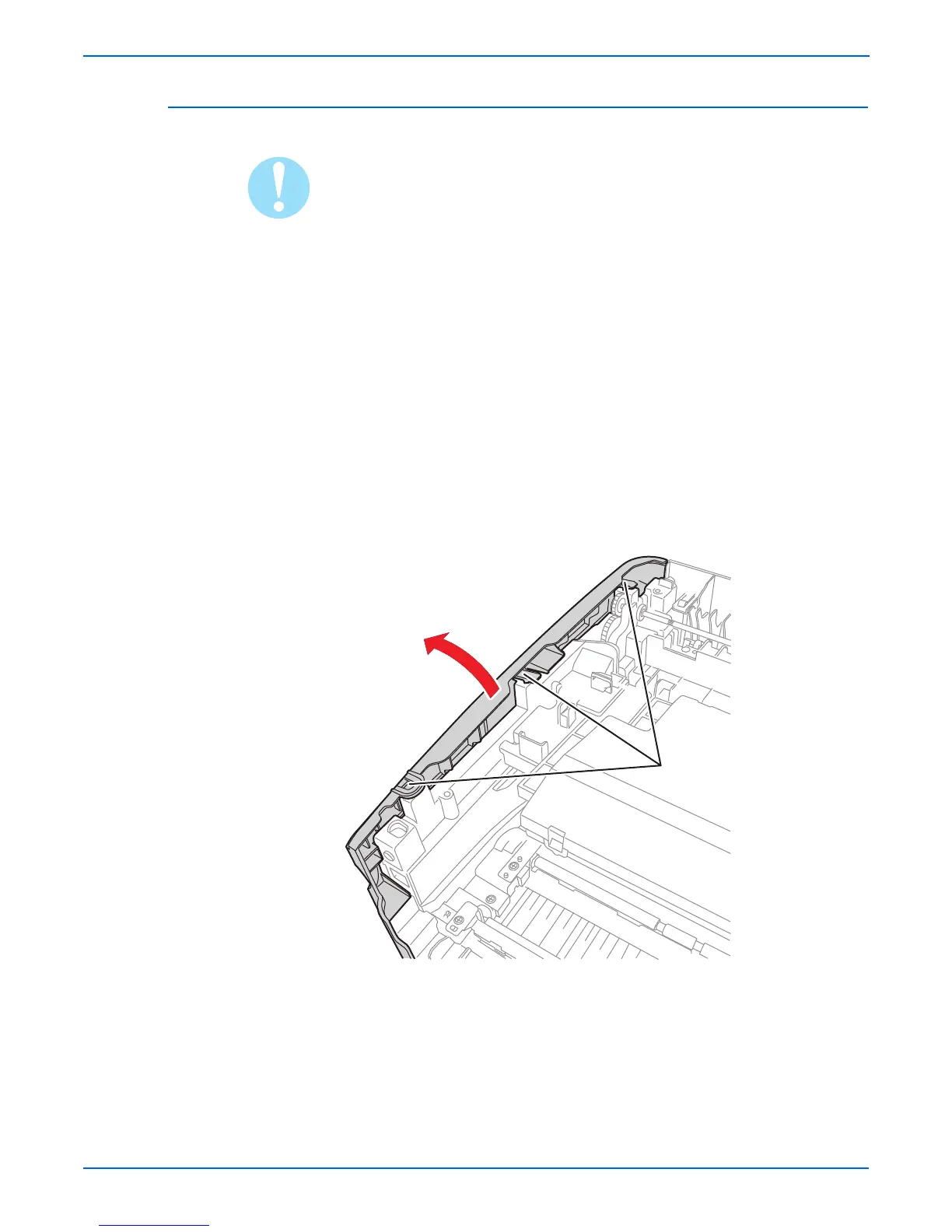

9. Release the 3 latches on the Left Cover from the printer frame.
