Phaser 3250 Laser Printer Service Manual 8-33
Service Parts Disassembly

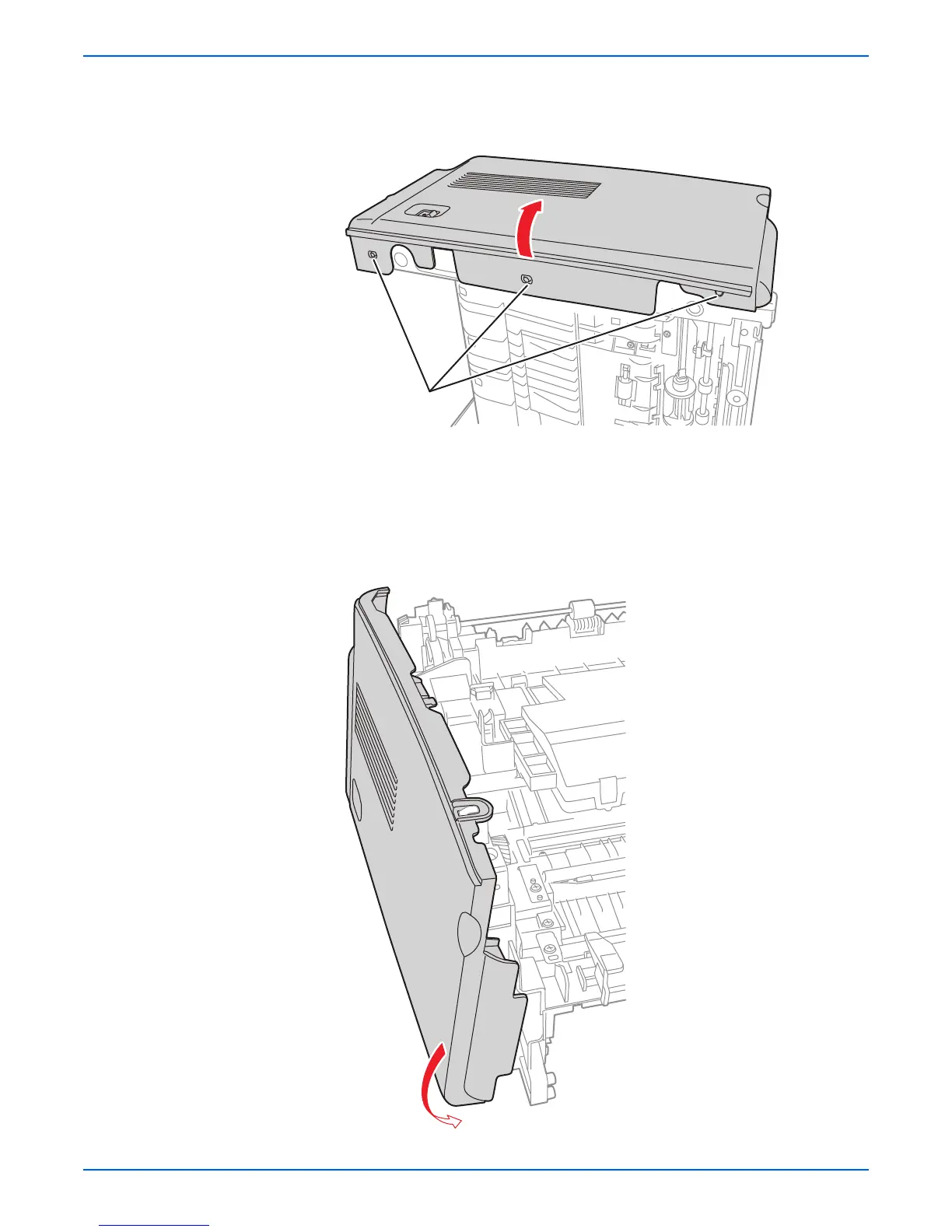

10. Use a flat tip screw driver to pry the bottom of the Left Cover from the 3
bosses on the bottom of the printer.
11. Slide the Left Cover out to remove the Left Cover.
Place the front side of the Left Cover at an angle to secure the latch of
the Left Cover to the notch on the printer frame while sliding the Left
Cover toward the printer.
To Next Page
