8-12 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly

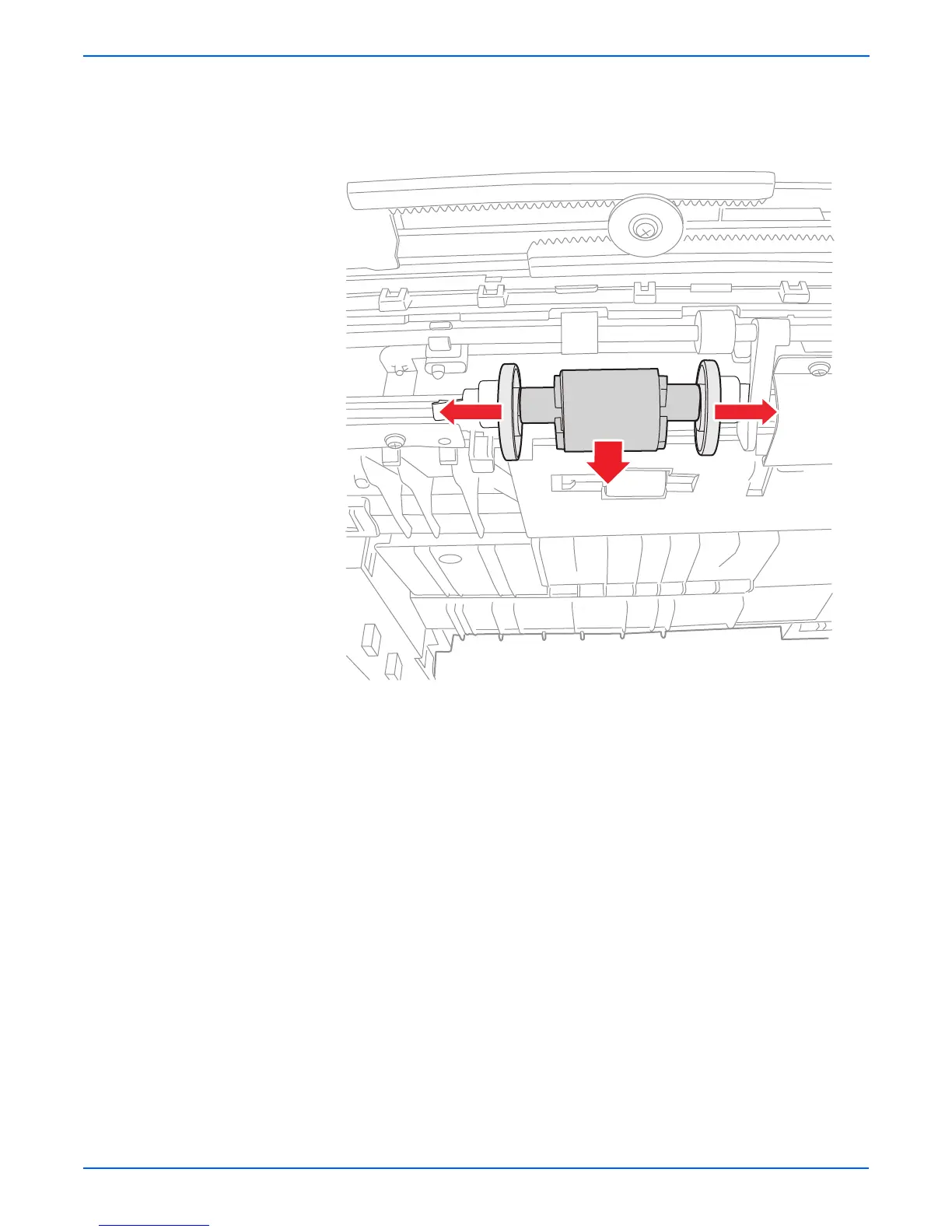

4. Slide the Pick-Up Stopper (PL6.1.25) toward the left side away from the
Pick-Up Housing (PL6.1.26-3).
5. Rotate the Pick-Up Rubber (PL6.1.26-1) and slide it out away from the
shaft to remove the MEA Pick-Up Unit.
