Phaser 3250 Laser Printer Service Manual 8-23
Service Parts Disassembly

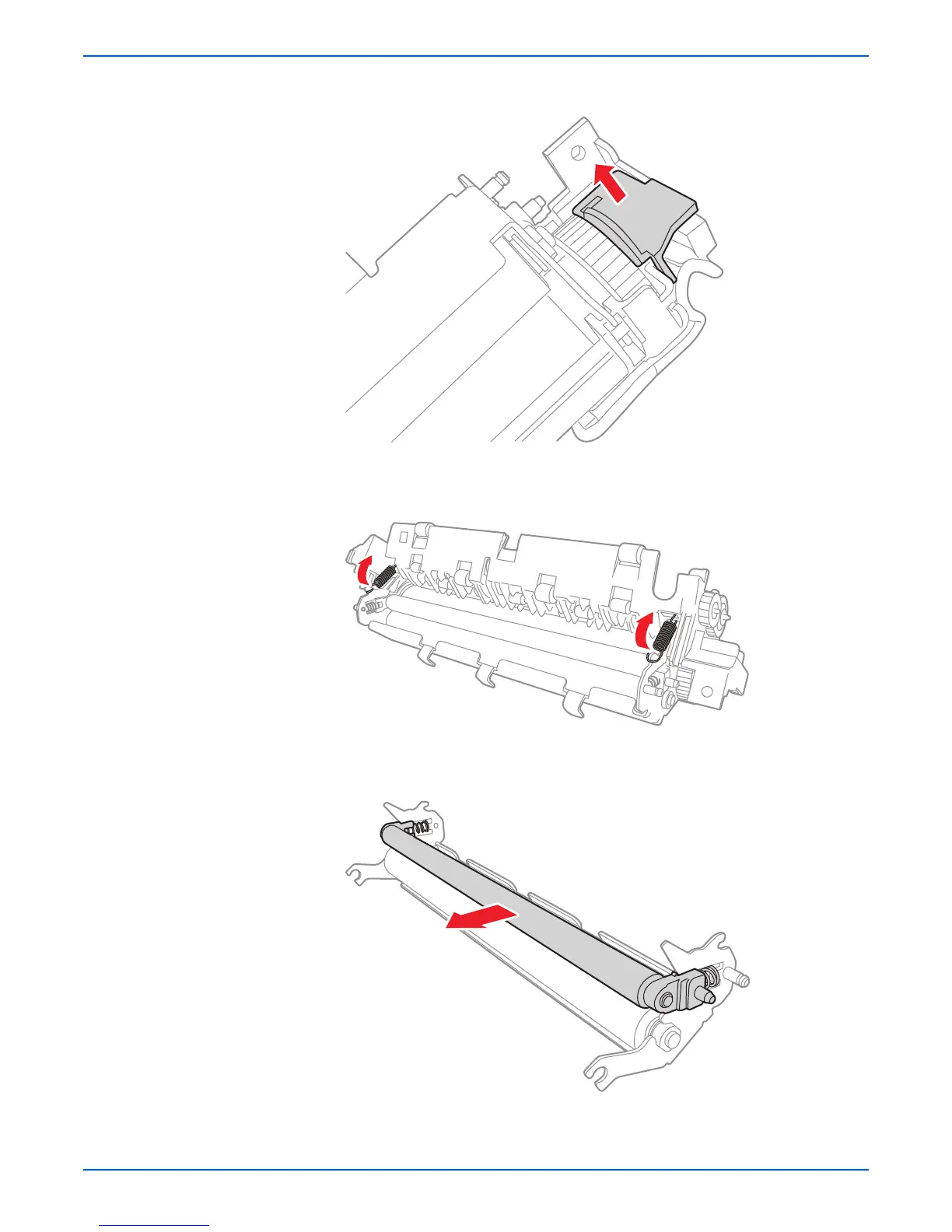

11. Release the latch to remove the Left Lamp Cap (PL9.1.31).
12. User a pair of pliers to unhook the left and right ES Springs (PL9.1.29)
securing the Fuser Frame (PL9.1.20) and the Fuser Cover (PL9.1.1).
13. Slide the Pressure Roller #2 together with the Bushings (PL9.1.24) and
the Springs (PL9.1.27) out away from the Fuser Frame.
