5/2011
4-33
Phaser 4600/4620 Printer Service Manual
REP 7.6
Repairs
Revision - Xerox Internal Use Only

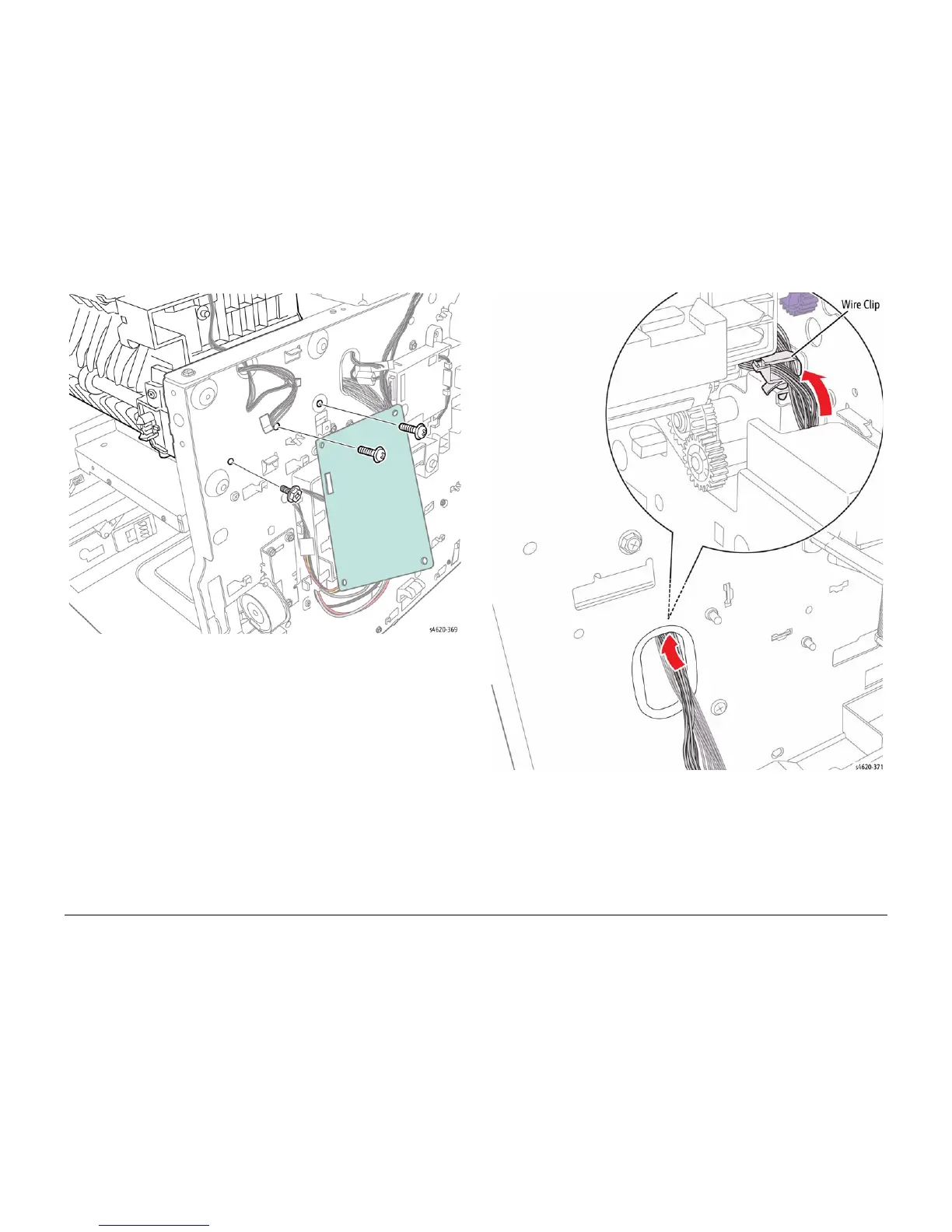

Figure 6 Remove the left side Exit Assembly screws
24. Remove 4 metal screws that secure the Tray 2 baseplate, Figure 8.
25. Remove the bearing from the Pick-up Assembly shaft, Figure 8.
26. Release the feeder harness from the clamp and feed the harness into the Tray 2 cavity,
Figure 7.
Figure 7 Release the Tray 2 Feeder harness
27. Remove the spring from the Pick-up Assembly, Figure 8.
