5/2011
4-34
Phaser 4600/4620 Printer Service Manual
REP 7.6
Revision - Xerox Internal Use Only
Repairs

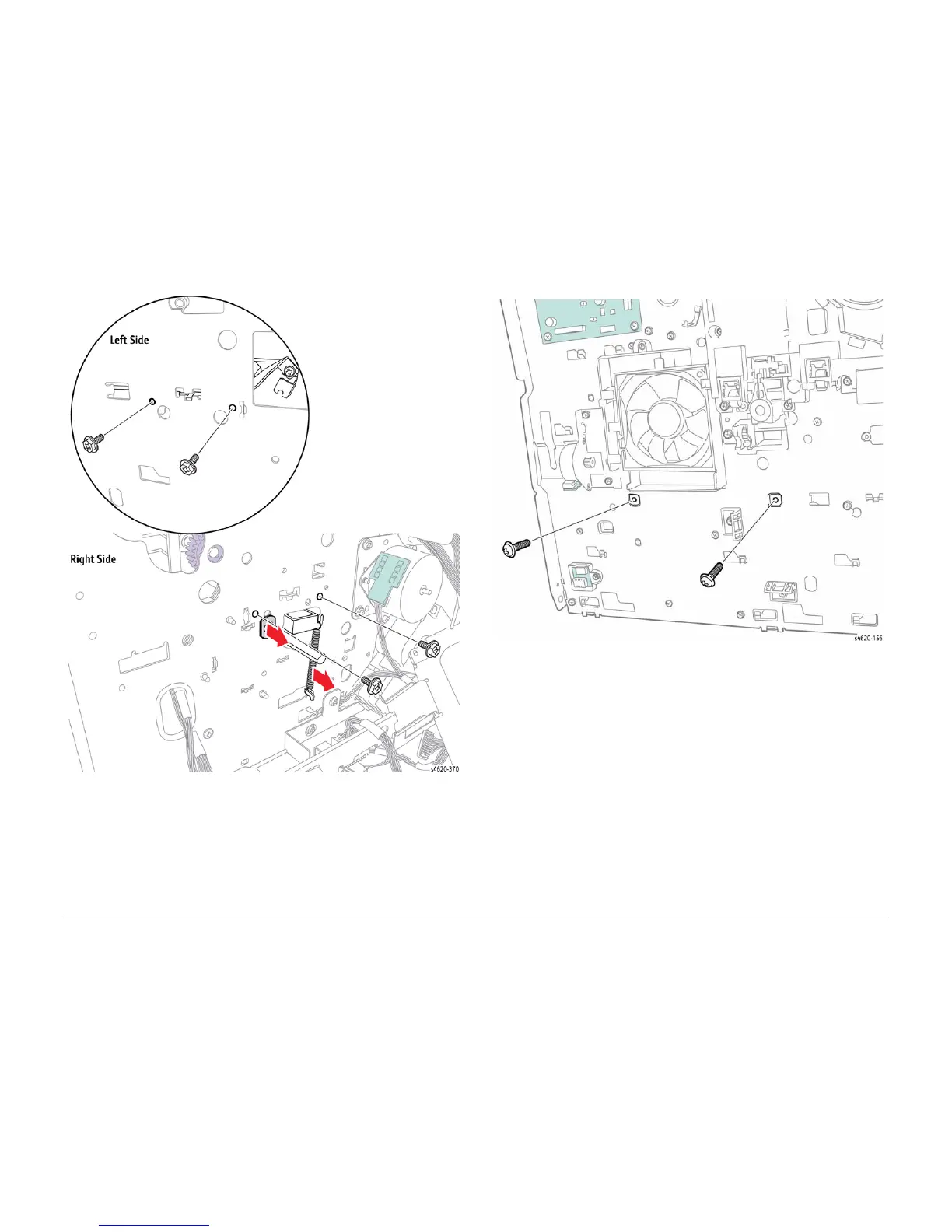

Figure 8 Remove the Tray 2 baseplate screws, bearing and spring
28. Remove 2 metal screws that secure the left side of the power supply tray, Figure 9.
Figure 9 Remove the left side power supply tray screws
29. Remove 3 (metal) screws that secure the left side of the lower LSU frame, Figure 10.
30. Remove 3 (metal) screws that secure the left side chassis to the bottom plate, Figure 10.
