5/2011
4-35
Phaser 4600/4620 Printer Service Manual
REP 7.6
Repairs
Revision - Xerox Internal Use Only

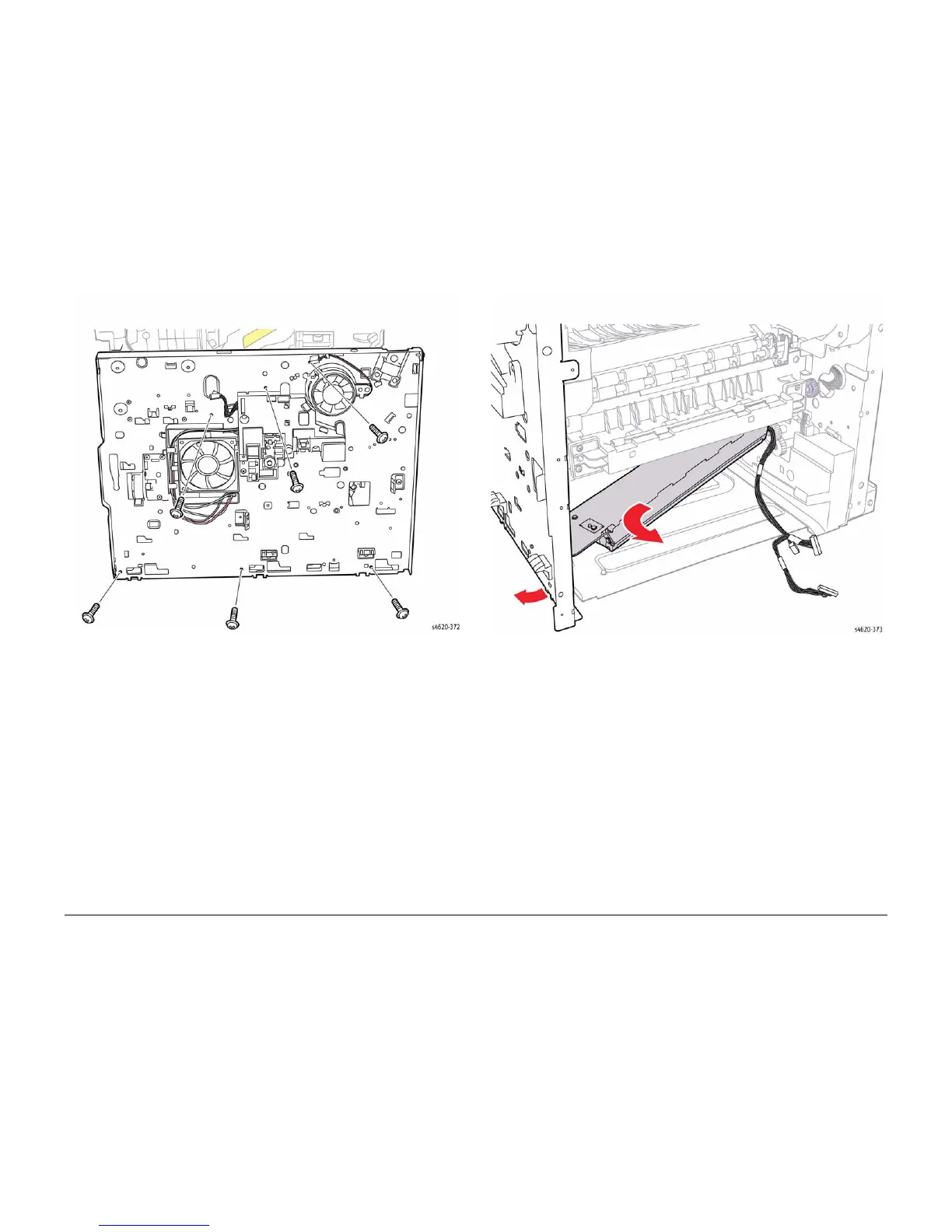

Figure 10 Remove the left side lower LSU frame and left chassis screws
31. Hold the left side chassis and release the Tray 2 baseplate from the chassis to remove
the Tray 2 Feeder Assembly from the chassis, Figure 11.
Figure 11 Remove the Tray 2 Feeder Assembly and baseplate
Replacement
Perform the removal steps in reverse order. Pay particular attention to chassis alignment fea-
tures, bosses and pins, as you install each component. Do not overtighten fasteners in plastic.
To Next Page
