Phaser 4600/4620 Printer Service Manual
REP 10.8
Repairs
Revision - Xerox Internal Use Only

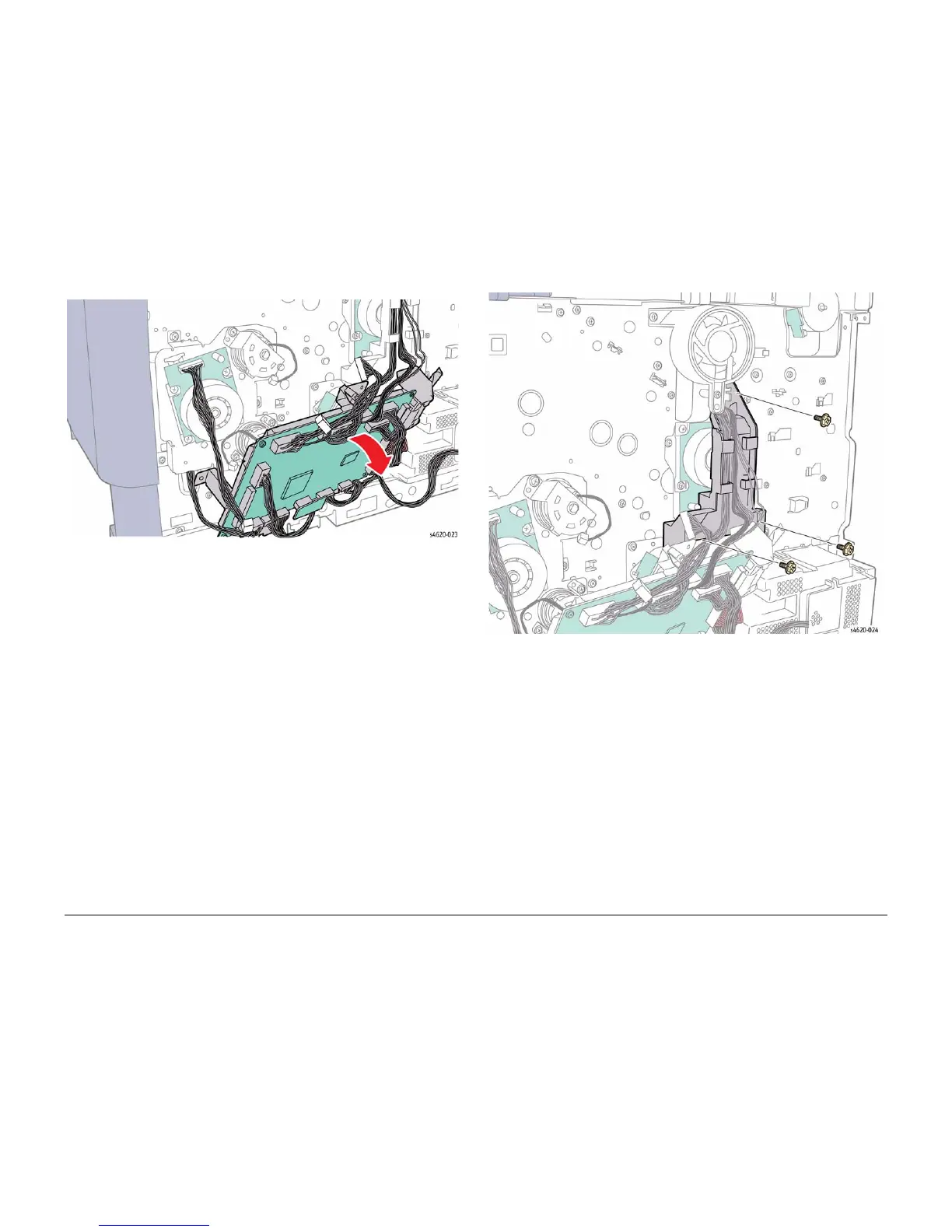

Figure 3 Position the MCU Board bracket to access the center harness guide
12. Remove 3 screws (metal) that secure the center harness guide to the chassis and move
the guide away from the Fuser Drive Assembly, Figure 4.
Figure 4 Remove the center harness guide screws
13. Remove the Fuser Drive spring, Figure 5.
