5/2011
4-94
Phaser 4600/4620 Printer Service Manual
REP 10.8
Revision - Xerox Internal Use Only
Repairs

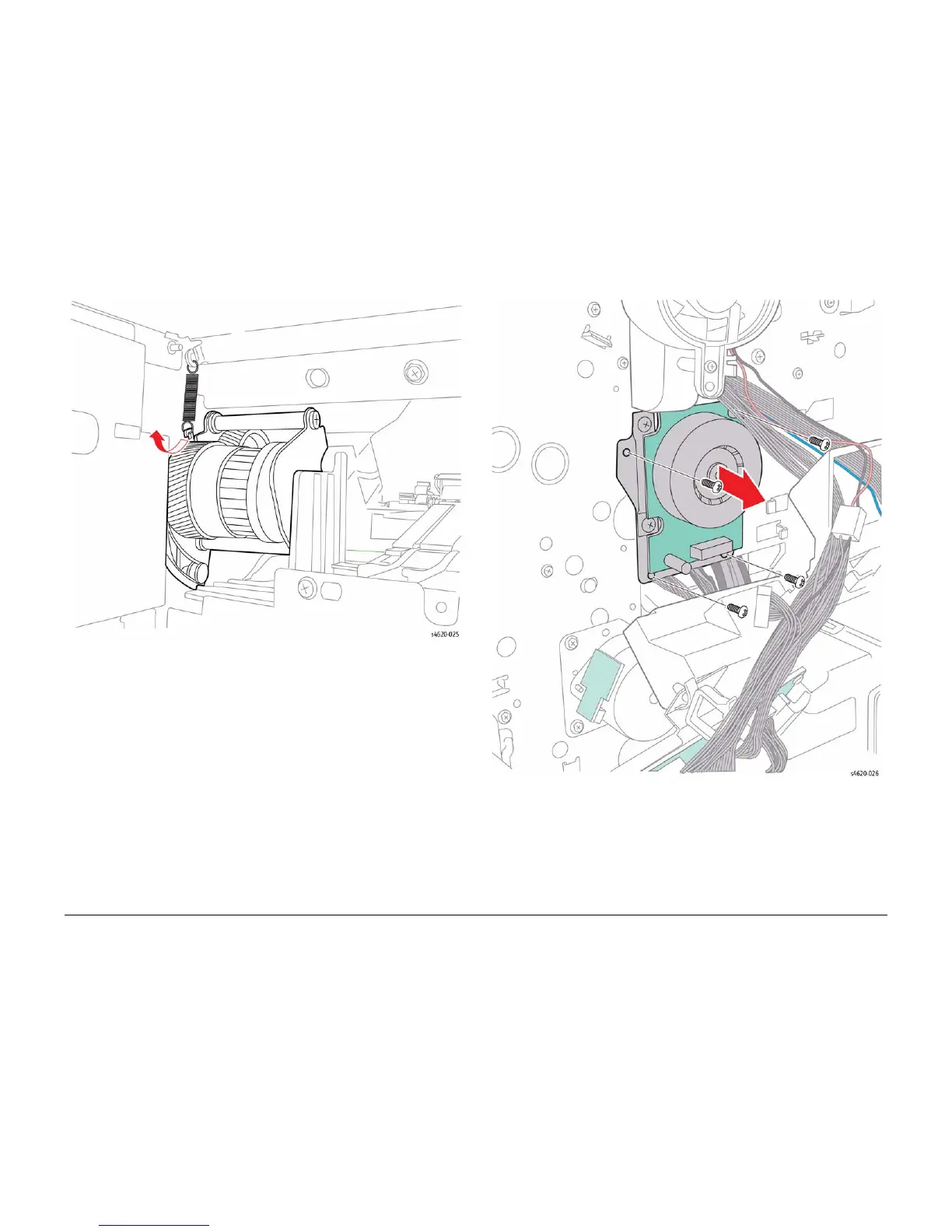

Figure 5 Remove the Fuser Drive spring
14. Disconnect P/J39 from the Fuser Drive Assembly.
15. Remove 4 screws (metal) that secure the Fuser Drive Assembly, Figure 6.
Figure 6 Remove the Fuser Drive screws
16. Pull the assembly through the hole in the chassis, Figure 7.
