Phaser 4600/4620 Printer Service Manual
REP 10.15
Repairs
Revision - Xerox Internal Use Only

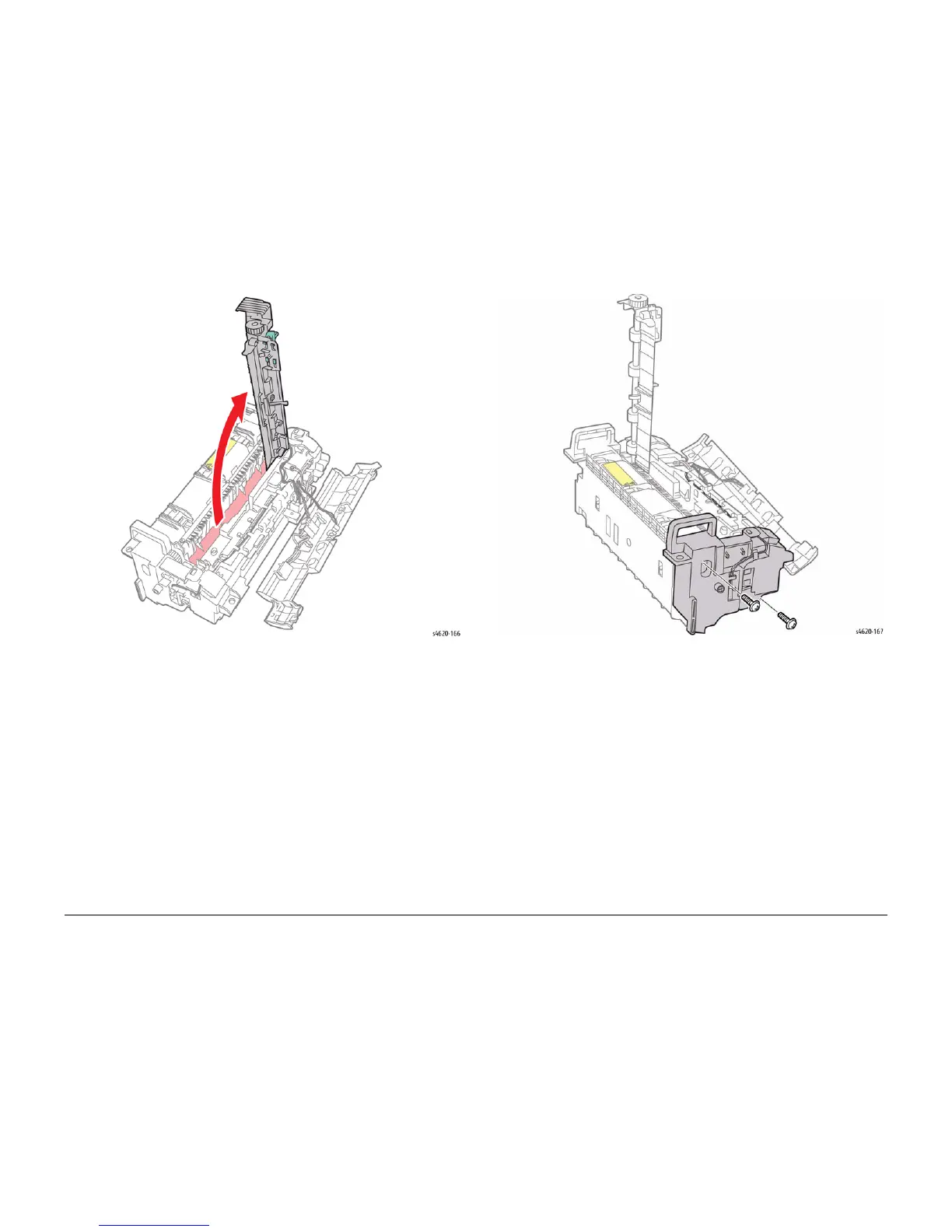

Figure 3 Open the lower exit guide
6. Remove 2 screws (silver, metal) that secure the right cover, Figure 4.
Figure 4 Remove the Fuser Right Cover
7. Disconnect 2 terminals (T1, T2) to the Thermostat, Figure 5.
