5/2011
4-108
Phaser 4600/4620 Printer Service Manual
REP 10.15
Revision - Xerox Internal Use Only
Repairs

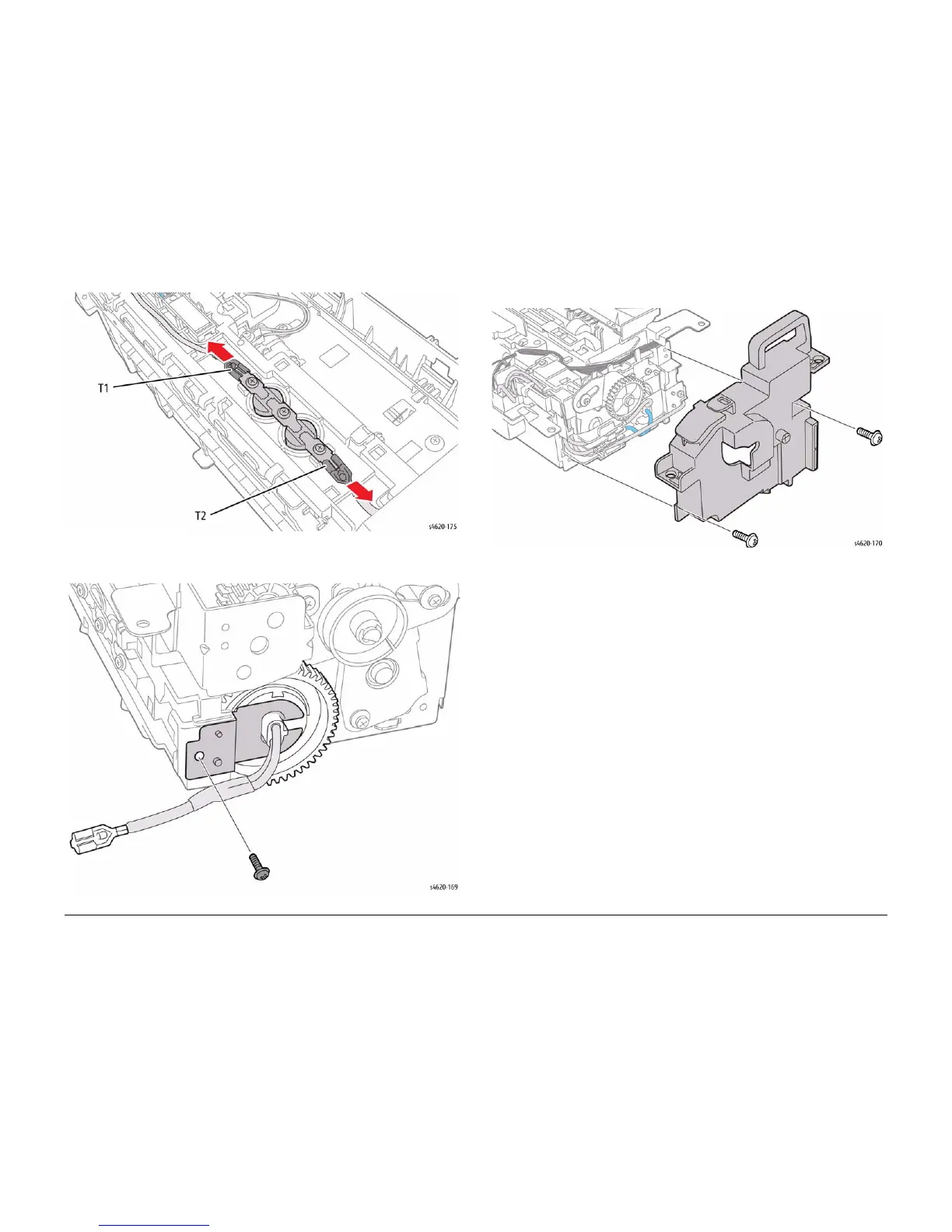

Figure 5 Disconnect the Thermostat
8. Remove 1 screw (Black, plastic) that secures the lamp bracket to the Fuser, Figure 6.
Figure 6 Remove the right side lamp bracket
9. Remove 2 screws (silver, metal) that secure the Fuser left cover, Figure 7
Figure 7 Remove the Fuser left cover
10. Disconnect the Heat roller thermistors (P/J67 and P/J68) and release the wiring from the
thermostat holder guides, Figure 8.
To Next Page
