5/2011
4-109
Phaser 4600/4620 Printer Service Manual
REP 10.15
Repairs
Revision - Xerox Internal Use Only

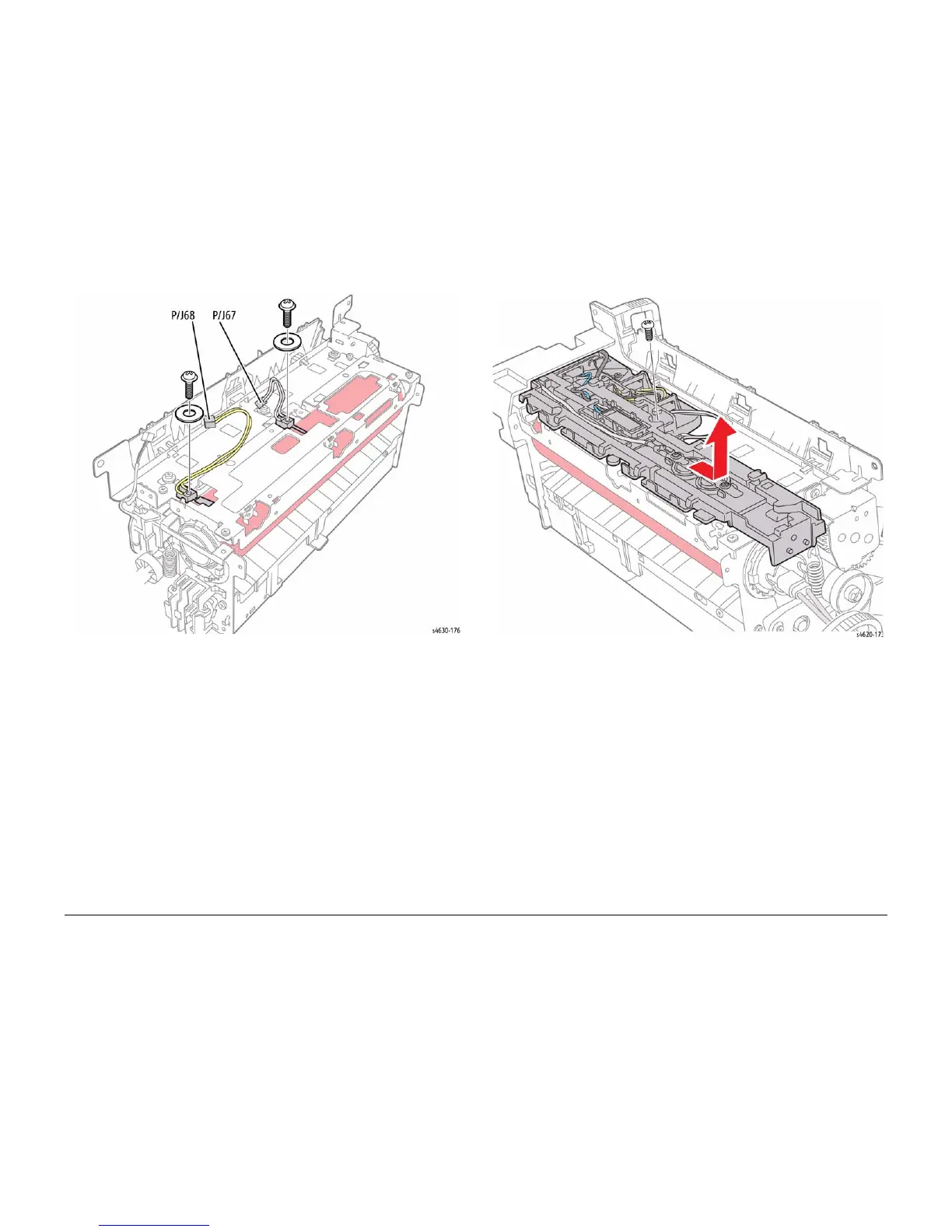

Figure 8 Disconnect Heat Roller thermistors
11. Remove 1 screw that secures the Thermostat holder to the Fuser and move the holder
right to release the hooks, Figure 9.
Figure 9 Remove the thermostat holder
12. Remove the Fuser Gear from the Heat Roller, Figure 10.
