Yamaha FJR1300A(D) - Page 197

GENERAL CHASSIS
4-20

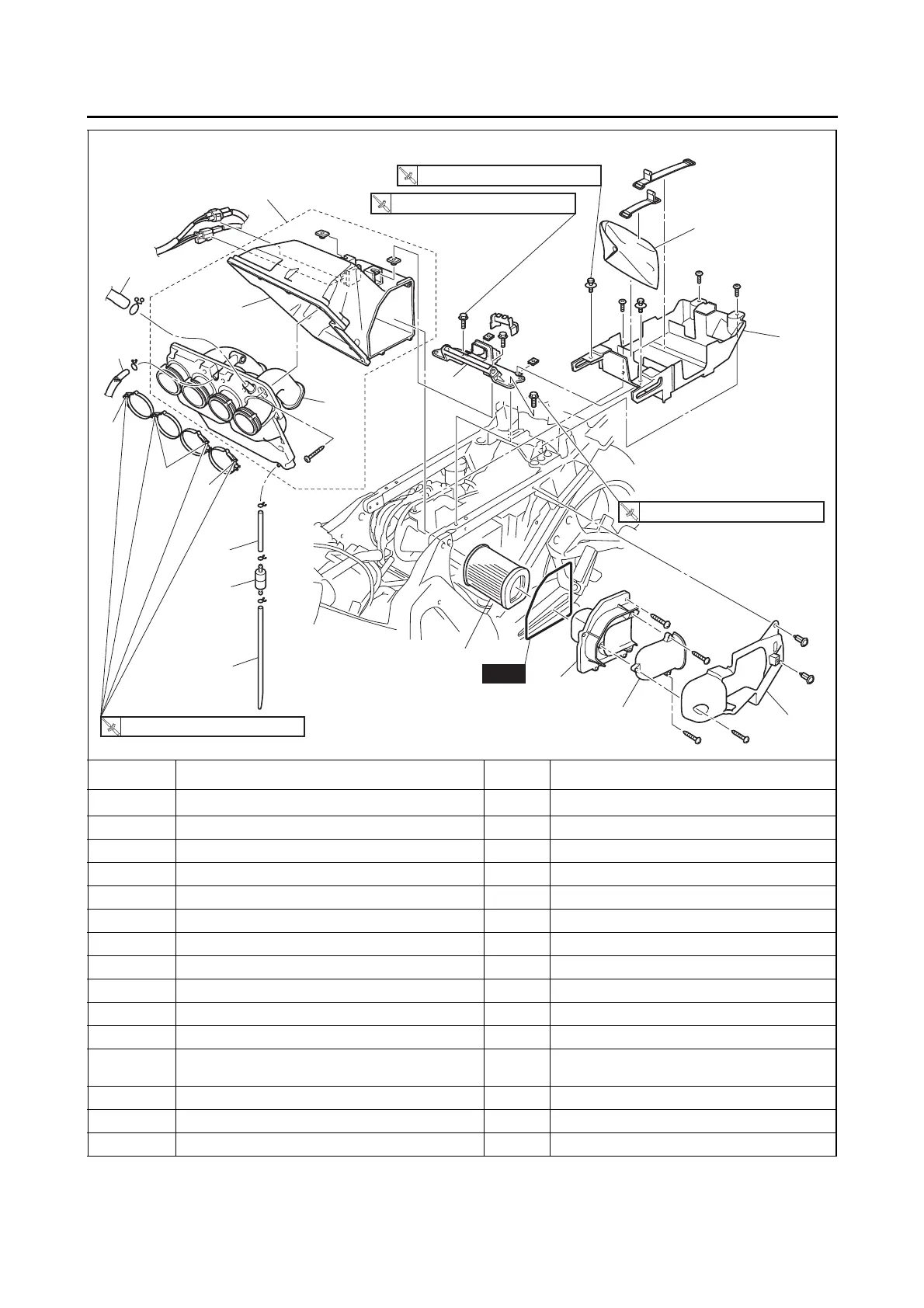

Removing the air filter case
Order Job/Parts to remove Q’ty Remarks
Left side cover
Refer to “Removing the seats and covers”.
Fuel tank Refer to “FUEL TANK” on page 7-1.
T-bar Refer to “Removing the T-bar”.
1 Air shroud 1
2 Air duct 1
3 Air filter case cover 1
4 Air filter element 1
5 Owner’s tool kit 1
6 Storage compartment 1
7 Rear lower fuel tank bracket 1
8 Crankcase breather hose 1 Disconnect.
9
Air induction system hose (air filter case joint
assembly to 3-way joint)
1 Disconnect.
10 Air filter case joint clamp screw 4 Loosen.
11 Air filter case assembly 1
12 Air filter case breather hose 2
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
New
5
6
1
2
(4)
(11)
7
10
3
4
10
12
13
11
15
14
8
12
10
(4)
9
