FRONT BRAKE
4-39

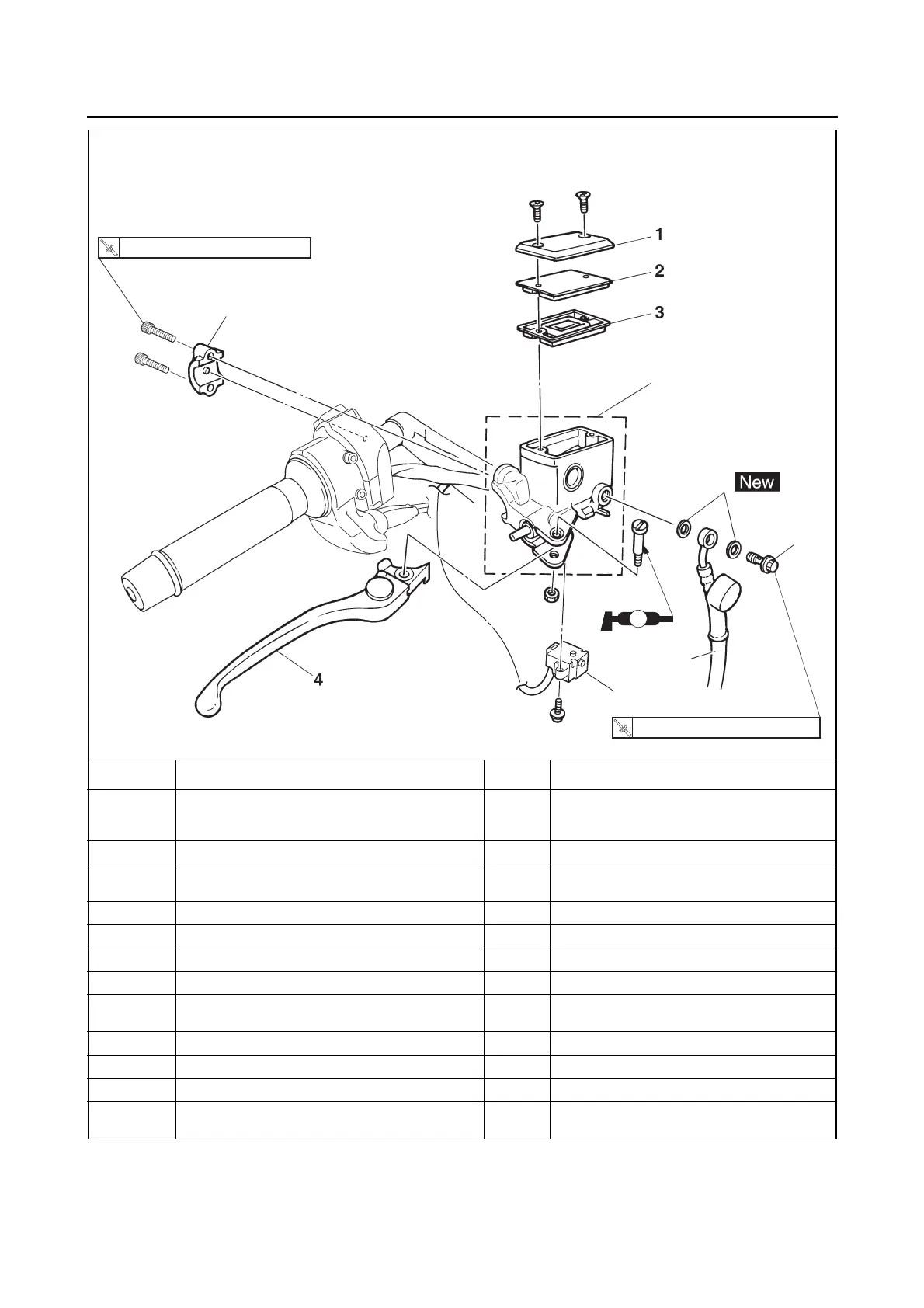

Removing the front brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-14.
1 Brake master cylinder reservoir cap 1
2
Brake master cylinder reservoir diaphragm hold-
er
1
3 Brake master cylinder reservoir diaphragm 1
4Brake lever 1
5 Brake hose union bolt 1
6 Copper washer 2
7
Brake hose (front brake master cylinder to brake
pipe/lower joint assembly)
1
8 Front brake master cylinder holder 1
9 Front brake master cylinder 1
10 Front brake light switch 1
For installation, reverse the removal proce-
dure.
9
6
5
7
8
10
S
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
