ABS (ANTI-LOCK BRAKE SYSTEM)
4-64

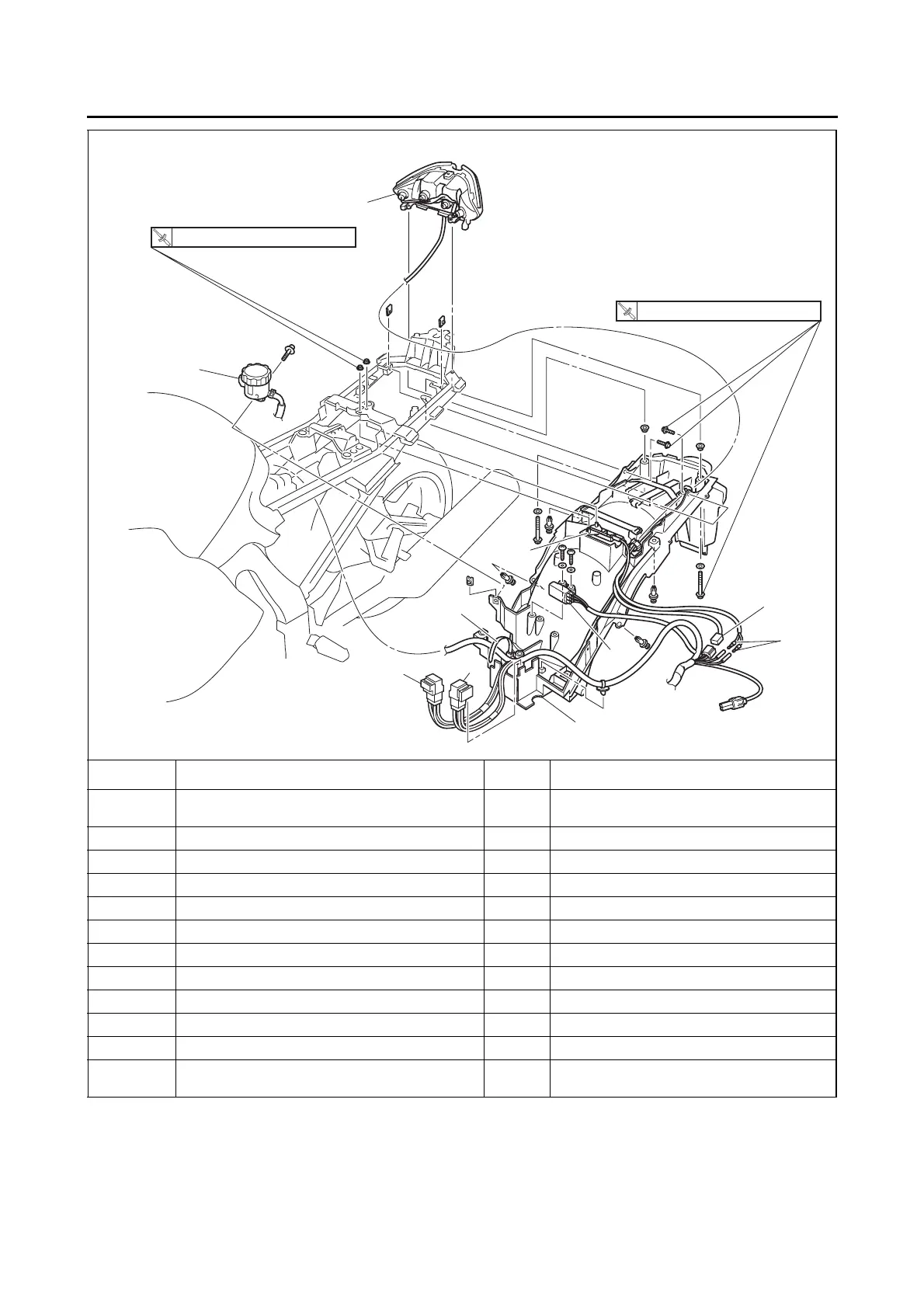

Removing the rear fender assembly
Order Job/Parts to remove Q’ty Remarks
Rear cowlings/Side covers/Air shroud
Refer to “GENERAL CHASSIS” on page
4-1.
1 Brake fluid reservoir 1
2 Tail/brake light assembly coupler 1 Disconnect.
3 License plate light connector 2 Disconnect.
4 Tail/brake light assembly 1
5 Lean angle sensor 1
6 Brake light relay 1
7 Brake switch relay 1
8 Plastic band 1
9 Seat lock cable assembly 1
10 Rear fender assembly 1
For installation, reverse the removal proce-
dure.
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
4
1
2
10
9
8
6
7
3
5
To Next Page
