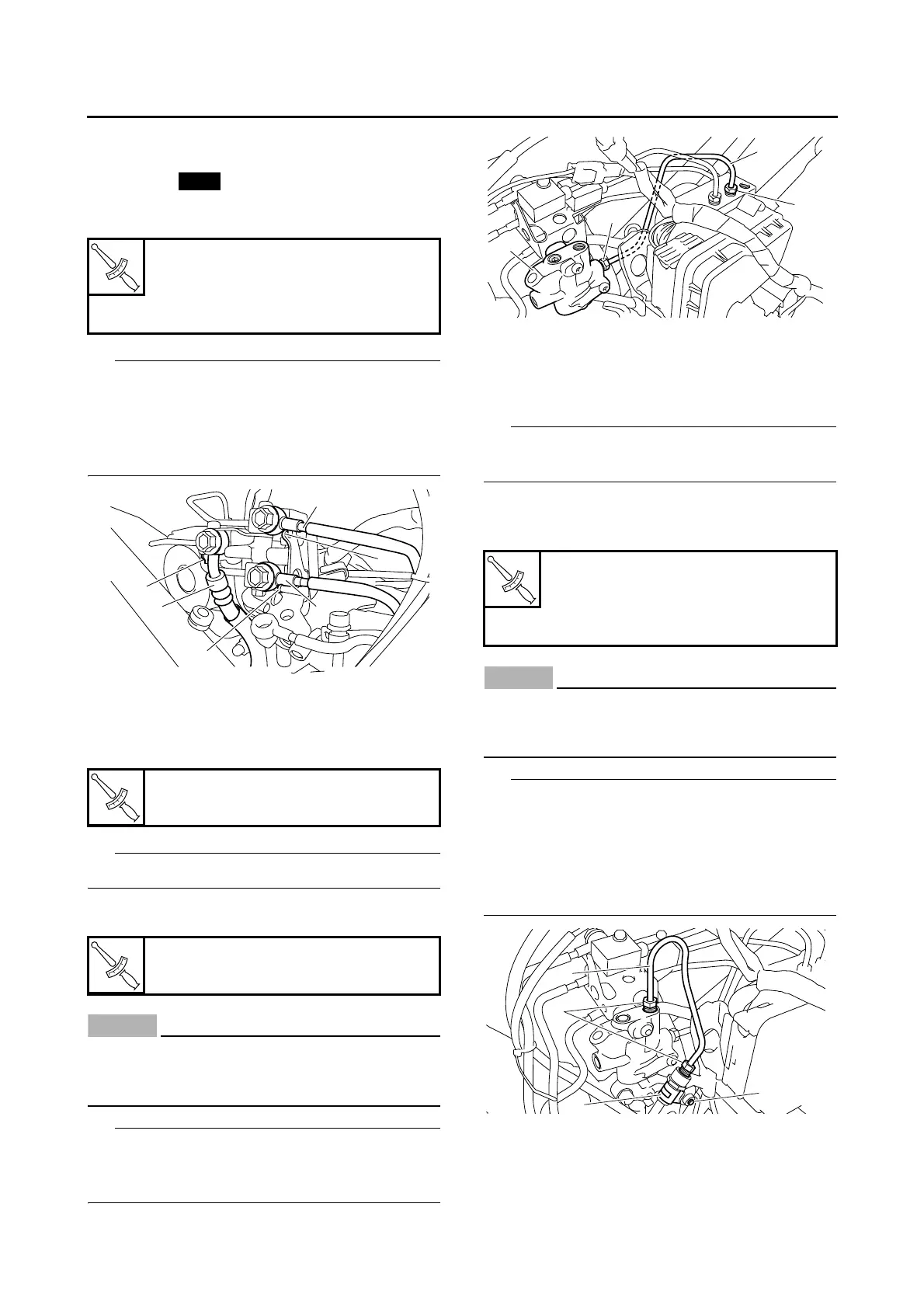

ABS (ANTI-LOCK BRAKE SYSTEM)
4-70
• Brake pipe (brake pipe/upper joint assembly
to front brake calipers) “3”
•Gaskets
• Brake pipe union bolts
• Brake hose union bolt
TIP
When installing the brake hose and brake pipes
onto the brake pipe joint assembly or brake hose
joint assembly, make sure that the brake pipes
touch the projections “a” on the hydraulic unit as-
sembly bracket.
7. Install:
• Proportioning valve “1”
• Brake pipe (hydraulic unit to proportioning
valve) “2”
TIP
Temporarily install the brake pipe.
8. Tighten:
• Brake pipe flare nuts
NOTICE
ECA3P6D022
If the brake pipe flare nut does not turn easi-
ly, replace the hydraulic unit, brake pipes,
and related parts as a set.
TIP
First tighten the flare nut “3” on the hydraulic unit
assembly end of the brake pipe, then the flare
nut “4” on the proportioning valve end.
9. Install:
• Brake pipe (proportioning valve to rear brake
hose) “1”
• Brake hose holder “2”
TIP
Temporarily tighten the brake pipe flare nuts and
brake hose holder bolt.
10.Tighten:
• Brake pipe flare nuts “3”
• Brake hose holder bolt “4”
NOTICE
ECA3P6D022
If the brake pipe flare nut does not turn easi-
ly, replace the hydraulic unit, brake pipes,
and related parts as a set.
TIP
• First tighten the brake pipe flare nut, then the
brake hose holder bolt.
• Make sure that the brake pipe is parallel to the
proportioning valve as shown in the illustration.
• Do not bend the brake pipe when tightening
the brake pipe flare nuts.
T
R
.
.
Brake pipe union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
Brake hose union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
T
R
.
.
Proportioning valve bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
T
R
.
.
Brake pipe flare nut
16 Nm (1.6 m·kg, 11 ft·lb)
New
1
2
a
a
a
3
T
R
.
.
Brake pipe flare nut
16 Nm (1.6 m·kg, 11 ft·lb)
Brake hose holder bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
1
2
3
4
3
2
4
1
