ABS (ANTI-LOCK BRAKE SYSTEM)
4-71

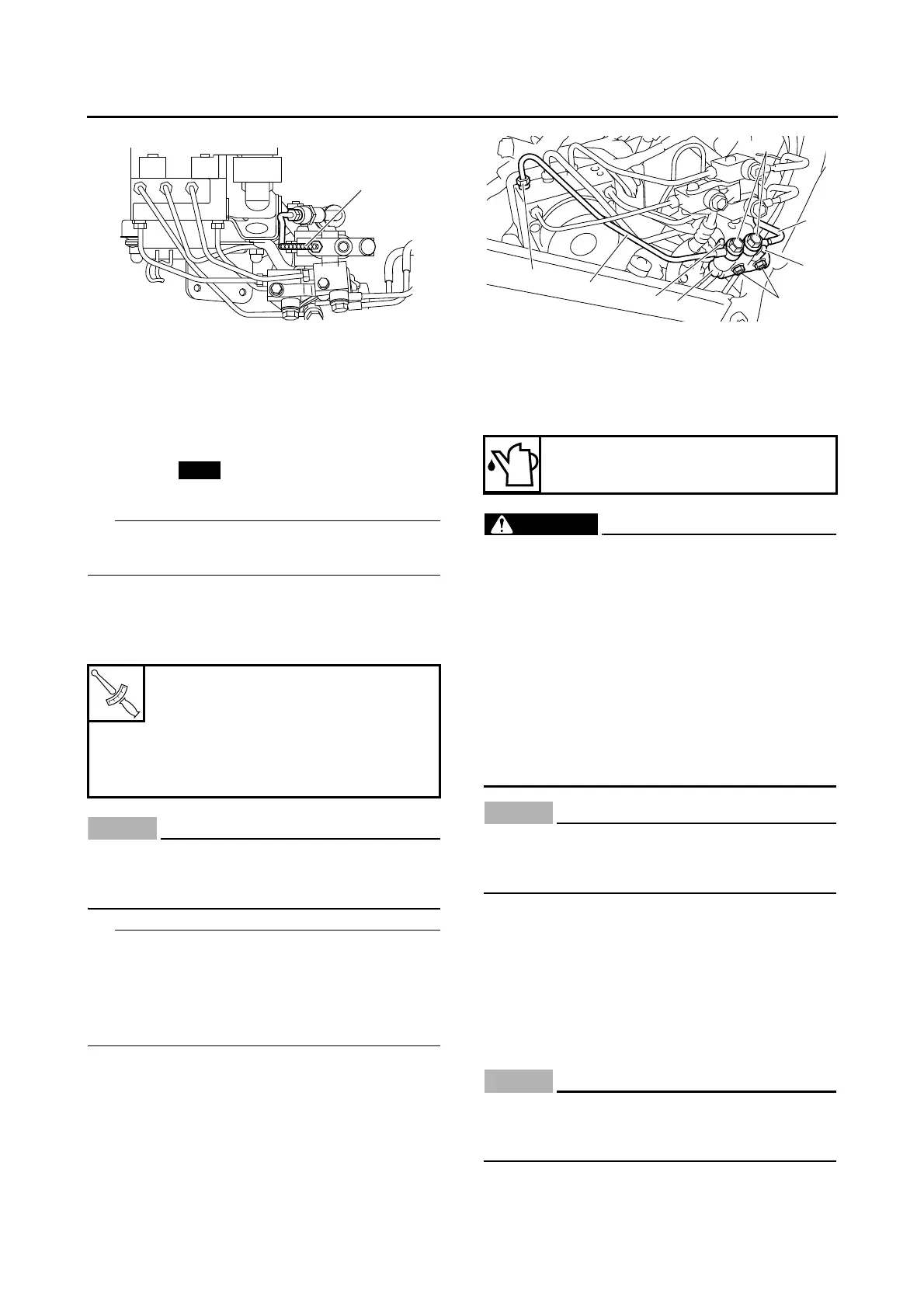

11.Install:
• Metering valve “1”
• Brake pipe (metering valve to right front brake
caliper) “2”
• Brake pipe (hydraulic unit to metering valve)
“3”
•Gaskets
• Brake pipe union bolts
TIP
Temporarily install the metering valve and brake
pipes.
12.Tighten:
• Brake pipe flare nut “4”
• Metering valve bolts “5”
• Brake pipe union bolts “6”
NOTICE
ECA3P6D022
If the brake pipe flare nut does not turn easi-
ly, replace the hydraulic unit, brake pipes,
and related parts as a set.
TIP
• First tighten the brake pipe flare nut and meter-
ing valve bolts, then the brake pipe union bolts.
• When tightening the brake pipes onto the me-
tering valve, make sure that the brake pipes
touch the projections “a” on the metering valve.
13.Fill:
• Brake master cylinder reservoir
• Brake fluid reservoir
(with the specified amount of the specified
brake fluid)
WARNING
EWA13090
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
NOTICE
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
14.Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-14.
15.Check the operation of the hydraulic unit ac-
cording to the brake lever and the brake ped-
al response. (Refer to “HYDRAULIC UNIT
OPERATION TESTS” on page 4-72.)
NOTICE
ECA14770
Always check the operation of the hydraulic
unit according to the brake lever and the
brake pedal response.
T
R
.
.
Brake pipe flare nut
16 Nm (1.6 m·kg, 11 ft·lb)
Metering valve bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
Brake pipe union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
1
New
Specified brake fluid
DOT 4
4
3
a
1
5
a
2
6
