FRONT FORK
4-85

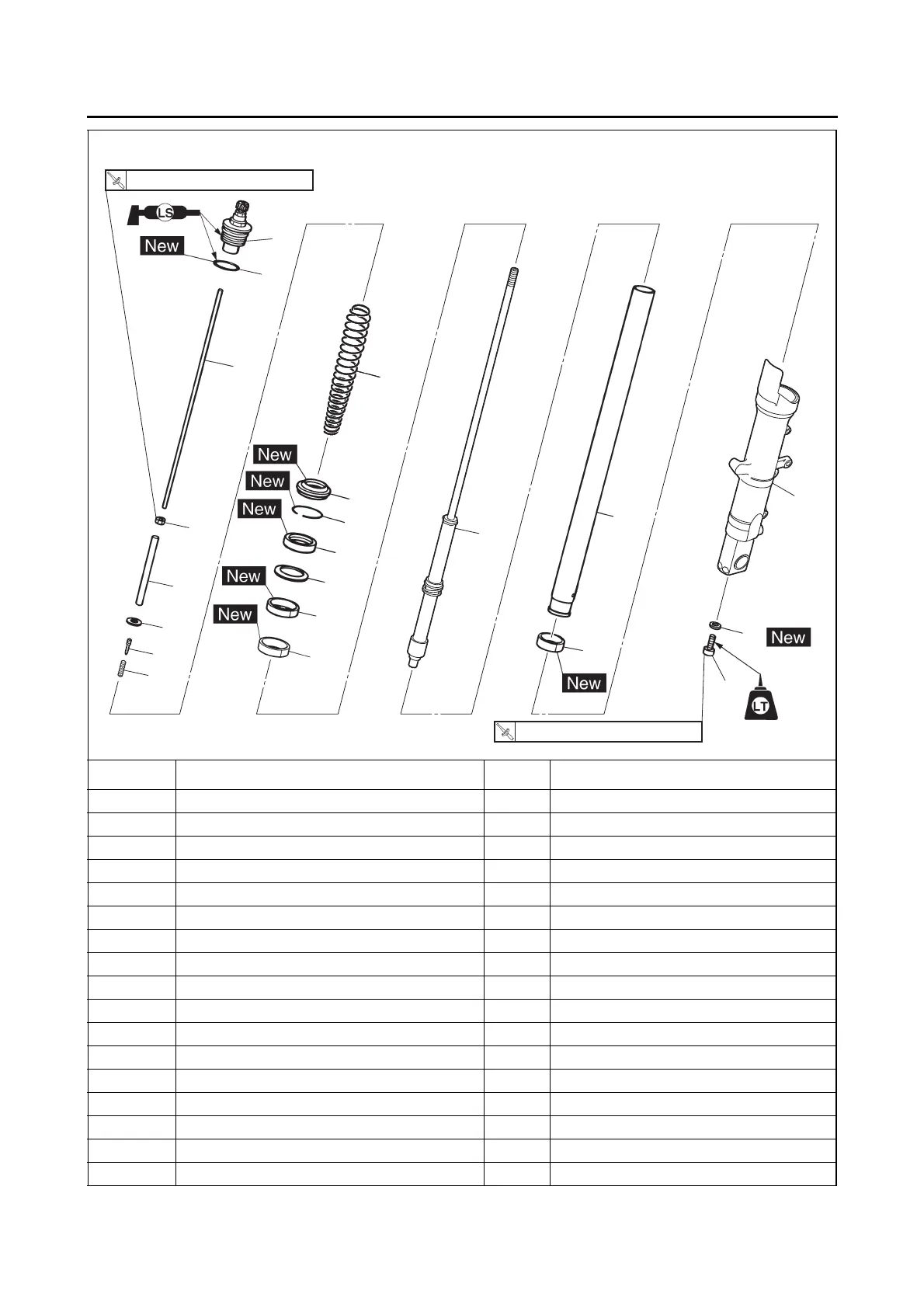

Disassembling the right front fork leg
Order Job/Parts to remove Q’ty Remarks
1 Cap bolt 1
2O-ring 1
3Nut 1
4 Spacer 1
5Washer 1
6 Damper adjusting rod 1
7 Damper adjusting valve 1
8 Damper adjusting valve spring 1
9 Fork spring 1
10 Dust seal 1
11 Oil seal clip 1
12 Oil seal 1
13 Washer 1
14 Damper rod assembly bolt 1
15 Copper washer 1
16 Damper rod assembly 1
17 Inner tube 1
17
20
15
21
16
19
18
13
12
11
10
9
5
4
3
6
2
1
7
8
14
35 Nm (3.5 m
•
kg, 25 ft
•
Ib)
T
.R
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
T
.R.
