SHAFT DRIVE
4-107

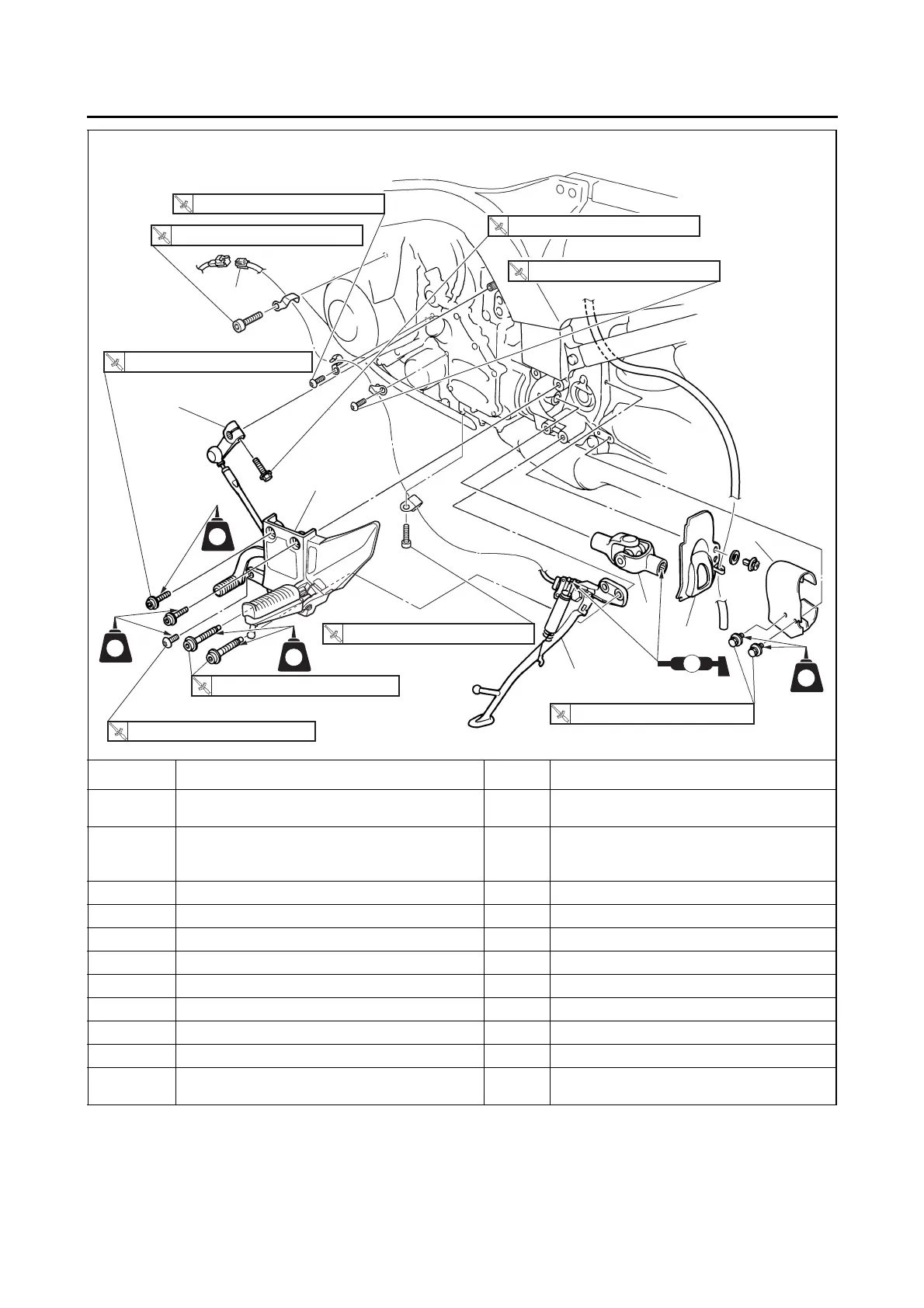

Removing the universal joint
Order Job/Parts to remove Q’ty Remarks
Left side cowling
Refer to “GENERAL CHASSIS” on page
4-1.
Final gear oil
Drain.
Refer to “CHANGING THE FINAL GEAR
OIL” on page 3-29.
Final drive assembly Refer to “SHAFT DRIVE” on page 4-106.
1 Shift arm 1
2 Sidestand switch coupler 1 Disconnect.
3 Sidestand 1
4 Left footrest assembly 1
5 Drive shaft dust cover 1
6 Universal joint dust cover 1
7 Universal joint 1
For installation, reverse the removal proce-
dure.
2
3
1
4
5
6
7
LT
LT
LT
LT
LS
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
.
R.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
.
R.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
.R.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
.R.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
.R.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
.
R.
28 Nm (2.8 m
•
kg, 20 ft
•
Ib)
T
.
R.
49 Nm (4.9 m
•
kg, 35 ft
•
Ib)
T
.
R.
65 Nm (6.5 m
•
kg, 47 ft
•
Ib)
T
.
R.
