SHAFT DRIVE
4-108

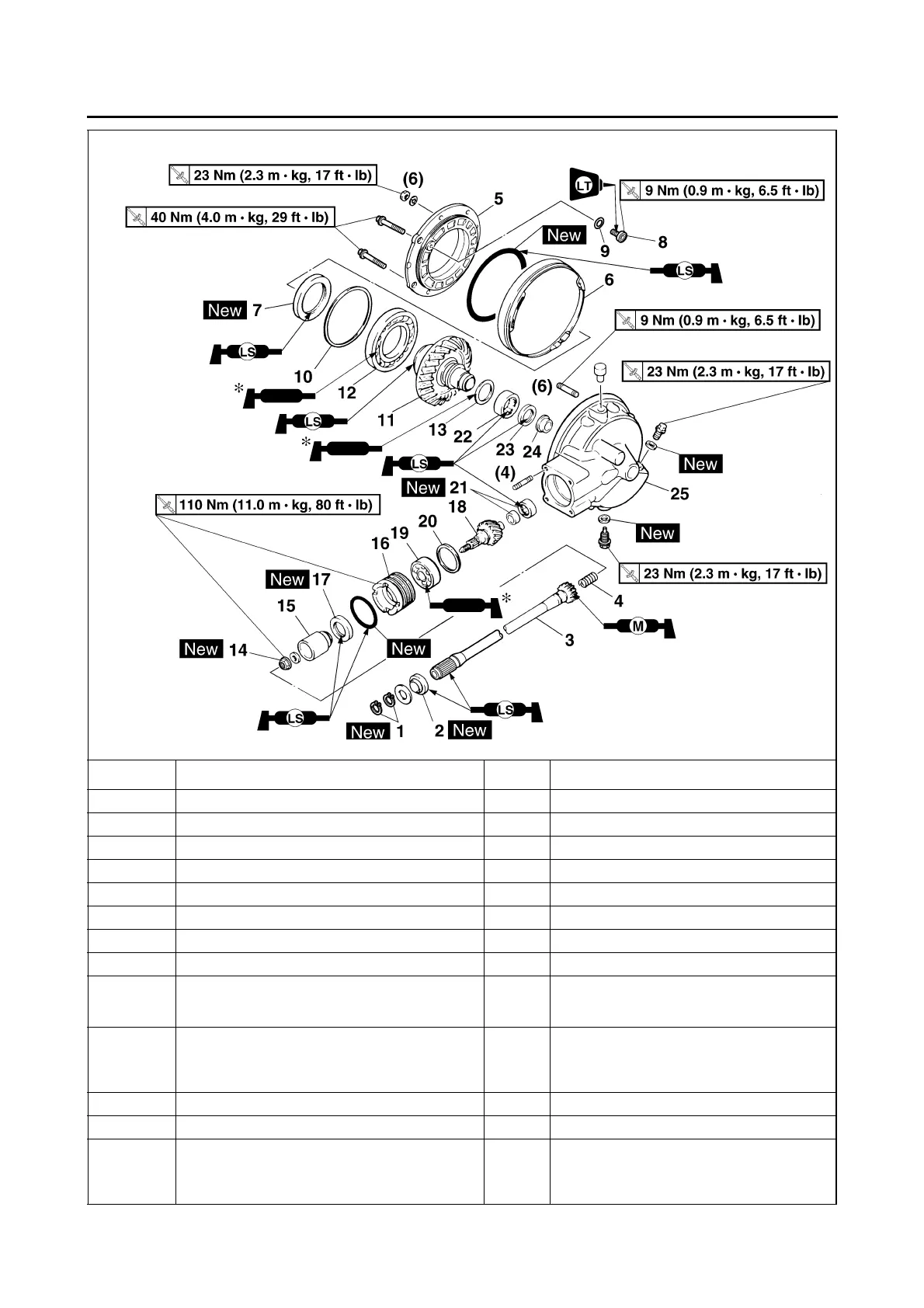

Disassembling the final drive assembly
Order Job/Parts to remove Q’ty Remarks
1 Circlip 2
2 Oil seal 1
3Drive shaft 1
4Spring 1
5 Ring gear bearing housing 1
6Dust cover 1
7 Oil seal 1
8 Stopper bolt 1 Left-hand threads
9 Stopper bolt shim
Refer to “ADJUSTING THE RING-GEAR-
TO-STOPPER-BOLT CLEARANCE” on
page 4-114.
10 Ring gear shim
Refer to “ADJUSTING THE FINAL GEAR
BACKLASH” on page 4-113 and “ALIGNING
THE FINAL DRIVE PINION GEAR AND
RING GEAR” on page 4-116.
11 Ring gear 1
12 Bearing 1
13 Thrust washer 1
Refer to “ADJUSTING THE FINAL GEAR
BACKLASH” on page 4-113 and “ALIGNING
THE FINAL DRIVE PINION GEAR AND
RING GEAR” on page 4-116.
To Next Page
